S4 5/05 - PUMP END 5 GPM- .5HP - DAB PUMPS
Availability by branch Checking stockCurrent stock

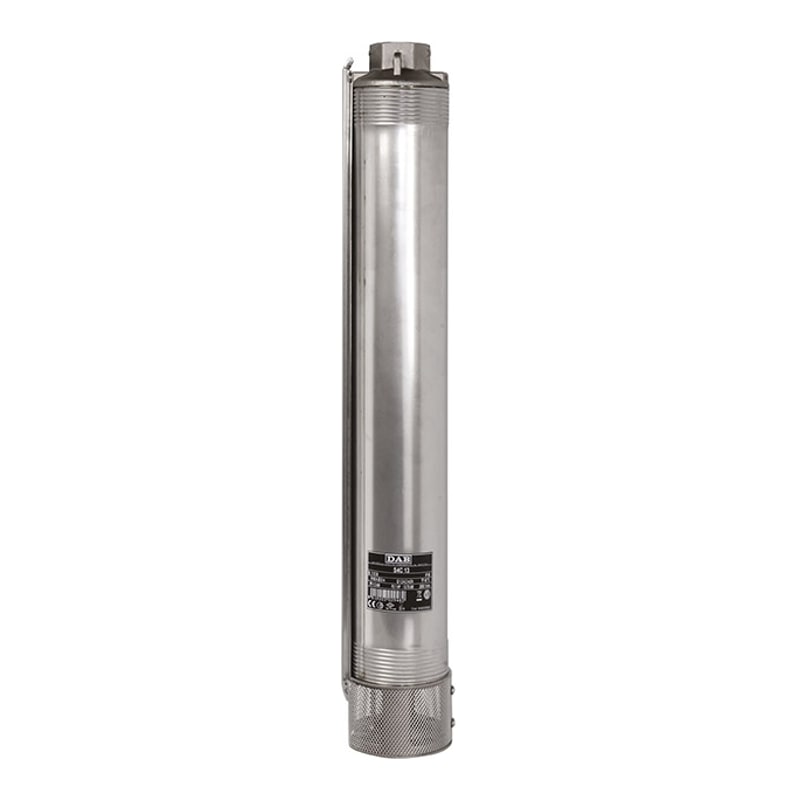

S4 pump end for residential, commercial and agricultural water supply
The DAB S4 is a 4 in multi-impeller borehole pump for clean water. This listing is the pump end only, so you pick the motor. It lifts water from boreholes for residential and commercial buildings, boosts pressure, and supplies garden and irrigation systems. Use it in a well at least 4 in across, or in a tank or cistern.
Sizing
- Series reaches up to 120 GPM and 1500 ft of head
- This listing's flow and head class is in the product title
- Its own figures are on the technical catalog under Downloads
- 1-1/4 in NPT thread on S4 5 to 25 models
Motor match
The maker pairs the S4 with 4 in motors: 4GG, 4TW and 4GX. Single phase 4GG and 4GX motors run from a 4CBUS control box, sold separately. 4TW motors use an internal capacitor and thermal protector, so no control box. For three phase, motor protection is the installer's to provide. Variable speed drive operation is fine at 30 to 60 Hz.

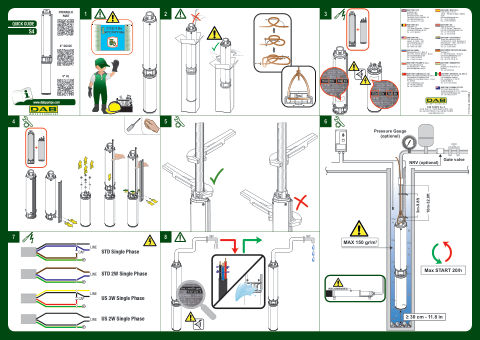

Installation
Fixed and vertical. Horizontal is possible if you add a cooling sleeve. Keep sand under 0.009 lb/ft³ (150 g/m³) and water between 32 °F and 104 °F (0 °C and 40 °C).
Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Technopolymer impellers housed with stainless steel adjustment rings.
- Pump liner, shaft, coupling with motor, integrated suction filter and cable guard are in stainless steel.
- Suction and delivery supports in micro-cast AISI 304 stainless steel.
- Removable built-in non-return valve in technopolymer or with stainless steel plate, depending on model.
- Technopolymer impellers designed for high efficiency in accordance with PEI Directive starting from 25 GPM.
- Pump can be coupled with 4 in motors: 4GG, 4TW and 4GX.
- 4GG and 4GX single phase motors must be installed with a control box (4CBUS line, sold separately). On three phase versions the protection must be provided by the user.
- 4TW motors operate without a starting control box, using 2 wire technology with internal capacitor and thermal protector.
| Brand | DAB |
|---|---|
| Manufacturer part # | S4 60Hz |
| Supplied as | Pump end only (motor sold separately) |
| Series | S4 60Hz 4 in multi-impeller borehole pump |
| Flow rate (series) | Up to 120 GPM |
| Head (series) | Up to 1500 ft (457.2 m) |
| Minimum well diameter | 4 in (10 cm) |
| Pump maximum diameter | 3.9 in (10 cm) |
| Connection thread, S4 5 to 25 models | 1-1/4 in NPT |
| Impeller material | Technopolymer |
| Maximum immersion depth | 984 ft (299.9 m) with 4GG or 4TW motor |
| Liquid temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Pumped liquid | Clean, free of solids and abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral |
| Maximum sand content | 0.009 lb/ft³ (150 g/m³) |
| Maximum starts | 20 per hour |
| Protection class | IP68 |
| Motor insulation class | F |
| Motors that fit | 4 in 4GG, 4TW and 4GX |
| Motor power options (series) | Single phase 115 V or 230 V 60 Hz; three phase 230 V or 460 V 60 Hz |
| Installation | Fixed, vertical. Horizontal possible, with a cooling sleeve recommended |
| Variable speed drive | Suitable, 30 to 60 Hz |
