S4 10/10 - PUMP END 10 GPM 1 HP - DAB PUMPS
Availability by branch Checking stockCurrent stock

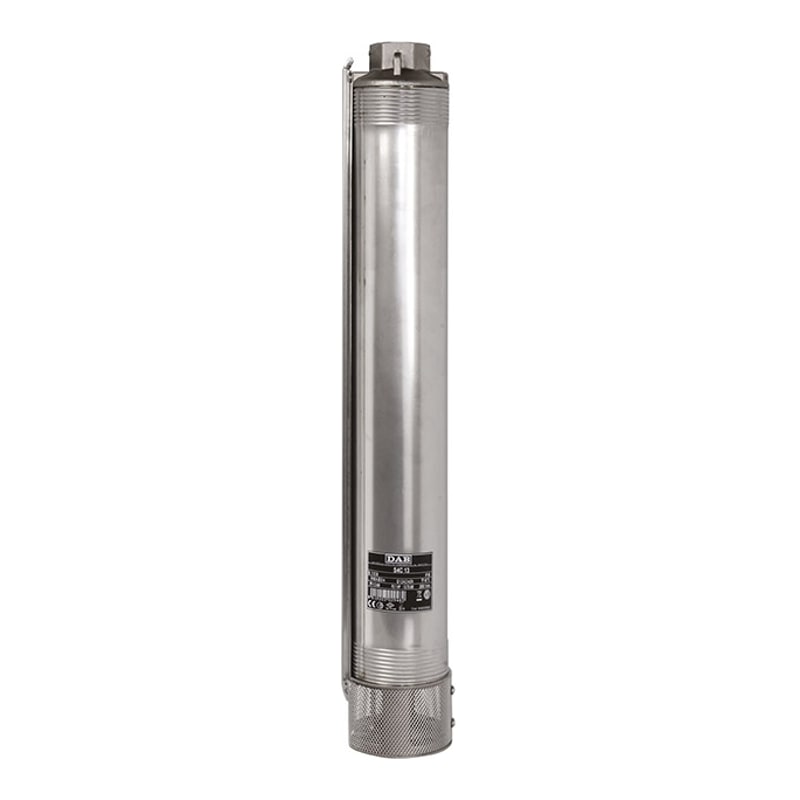

4 in S4 borehole pump end for clean water lift and boosting
The pump end of DAB's S4 60Hz line, sold without a motor. It is a 4 in multi-impeller borehole pump for clean water, used to lift from wells, boost pressure for gardens, and feed irrigation systems including agricultural ones. Wells need to be at least 4 in across, or use a tank or cistern.
Sizing
- S4 series: up to 120 GPM and 1500 ft of head
- Flow and head class for this listing are in the product title
- Its own figures are on the technical catalog under Downloads
- 1-1/4 in NPT connection on S4 5 to 25 models
Motor and control
Couples to 4 in motors: 4GG, 4TW and 4GX, all CSA approved. Single phase 4GG and 4GX motors have to run with a 4CBUS control box, sold separately. 4TW motors start without one, using 2 wire technology with an internal capacitor and thermal protector. On three phase motors the user provides protection.
Installation
Fixed and vertical is the normal install; horizontal works too, and the maker recommends a cooling sleeve. Max 20 starts per hour, IP68 protection, motor insulation class F, and the water may carry up to 0.009 lb/ft³ (150 g/m³) of sand.

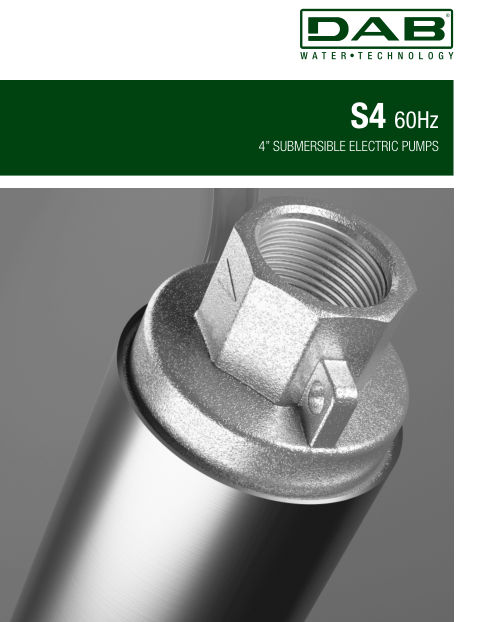

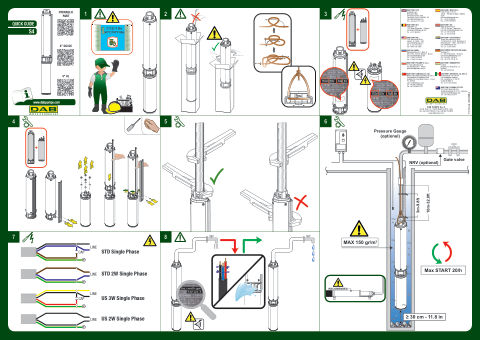

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Technopolymer impellers housed with stainless steel adjustment rings.
- Pump liner, shaft, coupling with motor, integrated suction filter and cable guard are in stainless steel.
- Suction and delivery supports in micro-cast AISI 304 stainless steel.
- Removable built-in non-return valve in technopolymer or with stainless steel plate, depending on model.
- Technopolymer impellers designed for high efficiency in accordance with PEI Directive starting from 25 GPM.
- Pump can be coupled with 4 in motors: 4GG, 4TW and 4GX.
- 4GG and 4GX single phase motors must be installed with a control box (4CBUS line, sold separately). On three phase versions the protection must be provided by the user.
- 4TW motors operate without a starting control box, using 2 wire technology with internal capacitor and thermal protector.
| Brand | DAB |
|---|---|
| Manufacturer part # | S4 60Hz |
| Supplied as | Pump end only (motor sold separately) |
| Series | S4 60Hz 4 in multi-impeller borehole pump |
| Flow rate (series) | Up to 120 GPM |
| Head (series) | Up to 1500 ft (457.2 m) |
| Minimum well diameter | 4 in (10 cm) |
| Pump maximum diameter | 3.9 in (10 cm) |
| Connection thread, S4 5 to 25 models | 1-1/4 in NPT |
| Impeller material | Technopolymer |
| Maximum immersion depth | 984 ft (299.9 m) with 4GG or 4TW motor |
| Liquid temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Pumped liquid | Clean, free of solids and abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral |
| Maximum sand content | 0.009 lb/ft³ (150 g/m³) |
| Maximum starts | 20 per hour |
| Protection class | IP68 |
| Motor insulation class | F |
| Motors that fit | 4 in 4GG, 4TW and 4GX |
| Motor power options (series) | Single phase 115 V or 230 V 60 Hz; three phase 230 V or 460 V 60 Hz |
| Installation | Fixed, vertical. Horizontal possible, with a cooling sleeve recommended |
| Variable speed drive | Suitable, 30 to 60 Hz |
