JETCOM technopolymer jet pump for small irrigation and home water supply

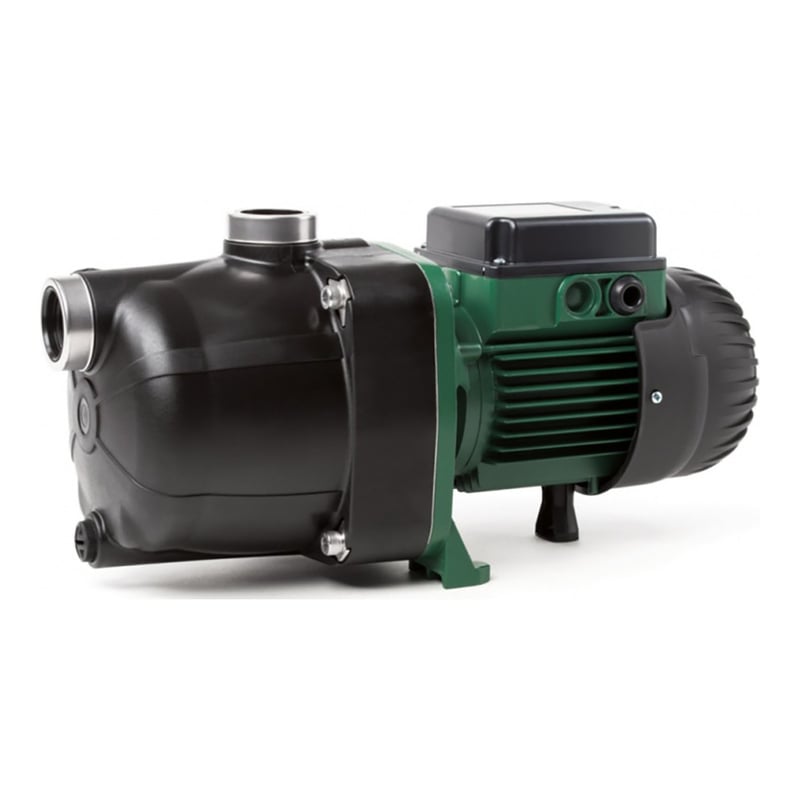

The DAB JETCOM is a self-priming centrifugal jet pump with a technopolymer pump body and motor support. Typical jobs are residential pressure boosting, small to medium irrigation systems and gardening. It handles air bubbles, water containing gas and small quantities of sand, and runs on 115-230 V 60 Hz dual voltage.
Series sizing
- 2.6 to 21 gpm (10 to 80 L/min), head up to 158 ft (48.3 m), 70 psi
- Suction depth up to 26 ft (8 m); maximum operating pressure 87 psi (6 bar)
- This model's size is in the product title; its own flow and head are on the spec sheet under Downloads
Installation
Fixed or portable in a horizontal position, with ambient temperature up to 104 °F (40 °C). Keep the water clean and free of solids and abrasives: 32 °F to 95 °F (0 °C to 35 °C) for domestic use, 32 °F to 104 °F (0 °C to 40 °C) for other uses. An internal ejector gives high suction capacity, and standardized components simplify spare parts. Other voltages and frequencies are available on request.

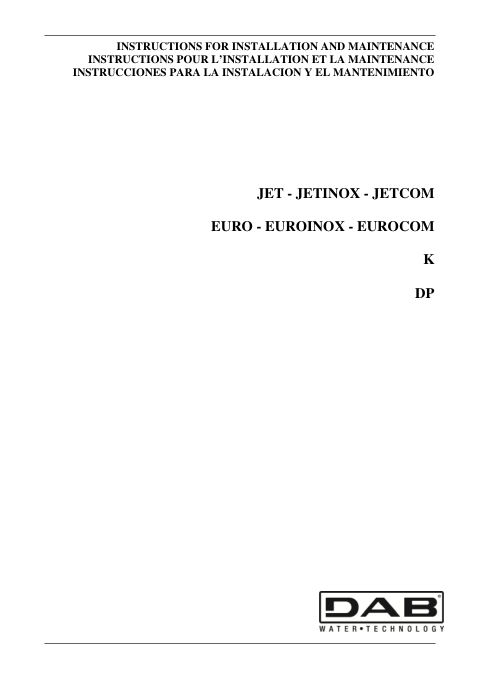

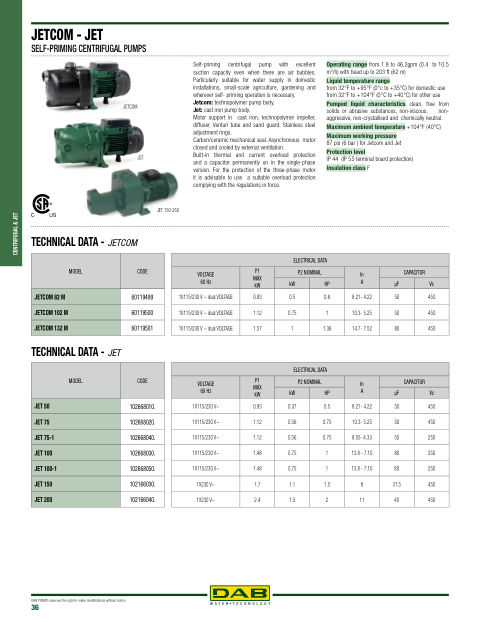

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- JET self-priming centrifugal electric pump
- Technopolymer pump body and motor support
- Internal ejector
- Motor cooling ensured by design of fan guard
- Able to handle water containing gas
- Operates in the presence of air bubbles and small quantities of sand
- High suction capacity
- Head up to 158 ft (48 m)
| Brand | DAB |
|---|---|
| Manufacturer part # | JETCOM |
| Series | JETCOM self-priming centrifugal pump |
| Pump body and motor support | Technopolymer |
| Operating range (series) | 2.6 to 21 gpm (10 to 80 L/min), head up to 158 ft (48.3 m), 70 psi |
| Maximum operating pressure | 87 psi (6 bar) |
| Maximum suction depth | 26 ft (8 m) |
| Power supply | 115-230 V 60 Hz dual voltage |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) domestic use; 32 °F to 104 °F (0 °C to 40 °C) other use |
| Maximum ambient temperature | 104 °F (40 °C) |
| Installation | Fixed or portable, horizontal position |
| Special version | Other voltages and/or frequencies on request |
