JETCOM 82 M 115-230/60 NPT - 3/4 HP - DAB PUMPS

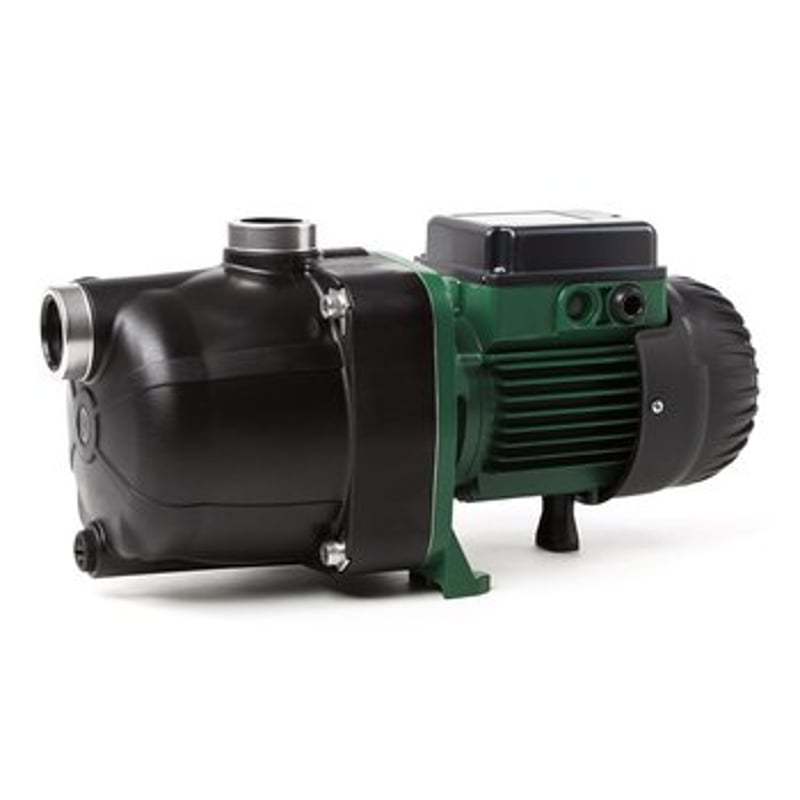

DAB JETCOM 62 M 1/2 HP Shallow-Well Jet Pump, 115/230V — self-priming technopolymer jet pump for residential potable water and irrigation supply.
OverviewThe DAB JETCOM 62 M is a 1/2 HP single-phase shallow-well jet pump delivering up to 11.9 GPM at a maximum head of 138 ft. It is suited to residential potable water supply, irrigation booster applications, and water transfer from open sources within 26 ft of suction lift. The dual-voltage 115/230V motor allows direct wiring to either North American residential panel voltage without rewinding.The hydraulic body and impeller are technopolymer composite for corrosion resistance in potable water service. The motor is TEFC-rated for outdoor or pump house installation. 1″ NPT suction and discharge ports accept standard plumbing fittings. Compatible with a Boshart or equivalent 1/4″ pressure switch and tank tee assembly. Refer to manufacturer for complete performance curve and warranty terms.
Specifications

HP	1/2 HP
Max flow	11.9 GPM
Max head	138 ft
Voltage	115/230V, 1-phase, 60 Hz
Max suction lift	26 ft
Connections	1″ NPT suction & discharge
Body material	Technopolymer
Part No.	DAB-JETCOM62
