JETCOM 102 M 115-230/60 NPT - 1 HP - DAB PUMPS
Availability by branch Checking stockCurrent stock

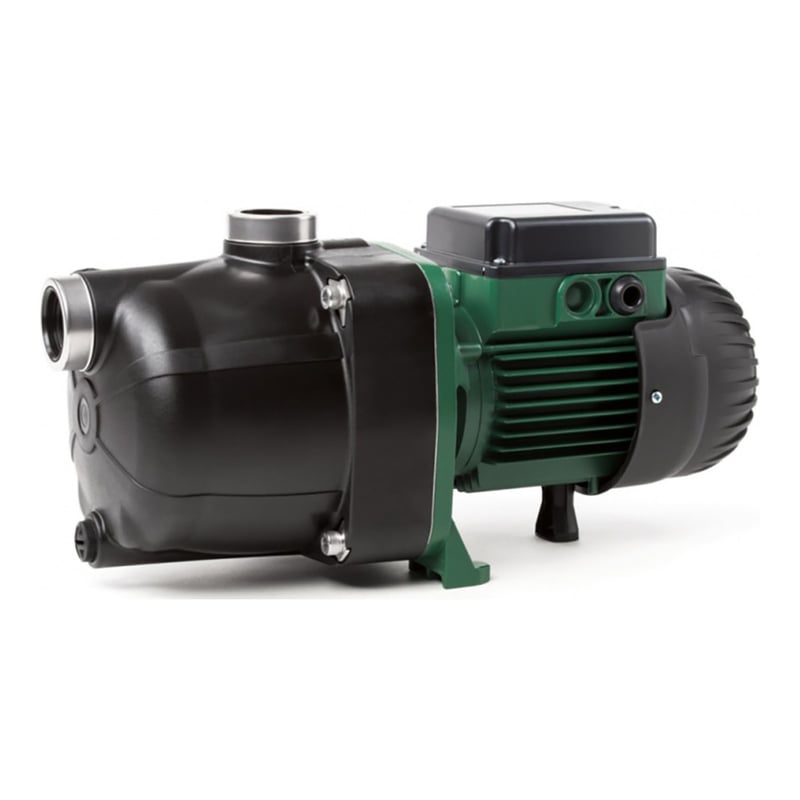

Technopolymer self-priming jet pump for home boosting and garden irrigation
The DAB JETCOM is a self-priming centrifugal jet pump with a technopolymer body and motor support. It is aimed at residential pressure boosting, small to medium irrigation systems and gardening, and it keeps pumping through air bubbles and small amounts of sand. Dual voltage 115-230 V 60 Hz covers either supply.
Series sizing
- 2.6 to 21 gpm (10 to 80 L/min), head up to 158 ft (48.3 m)
- Suction depth up to 26 ft (8 m); maximum operating pressure 87 psi (6 bar)
- The size for this listing is in the product title; its own flow and head are on the spec sheet under Downloads
Installation
Mount it fixed or portable, in a horizontal position. Use it with clean, non-aggressive water from 32 °F to 95 °F (0 °C to 35 °C) for domestic use, or to 104 °F (40 °C) for other uses. The internal ejector gives it strong suction, the fan guard is designed to cool the motor, and standardized components make spare parts easy to manage.

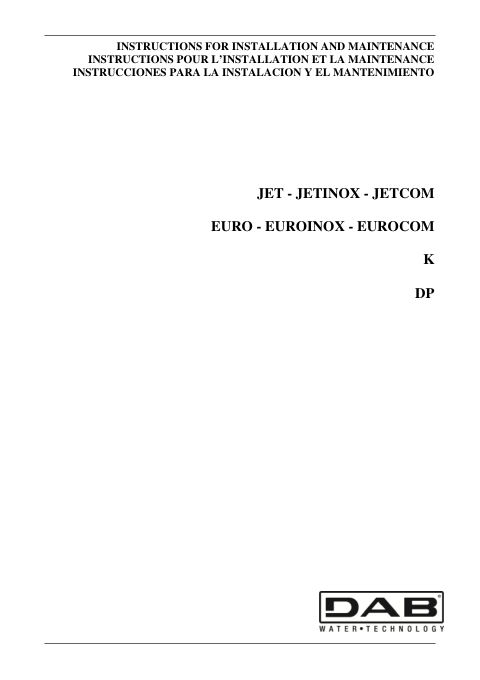

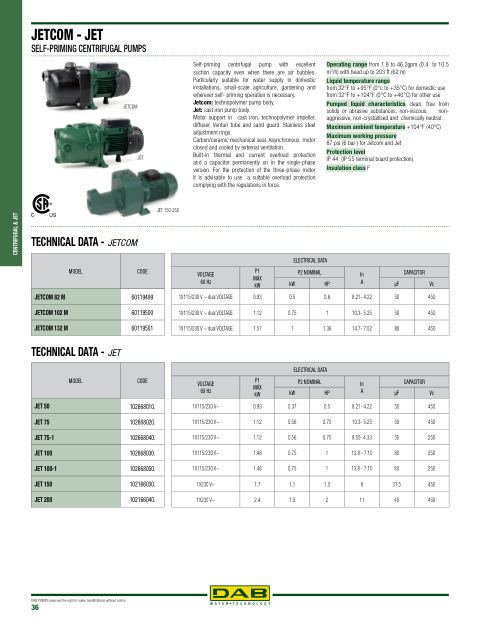

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- JET self-priming centrifugal electric pump
- Technopolymer pump body and motor support
- Internal ejector
- Motor cooling ensured by design of fan guard
- Able to handle water containing gas
- Operates in the presence of air bubbles and small quantities of sand
- High suction capacity
- Head up to 158 ft (48 m)
| Brand | DAB |
|---|---|
| Manufacturer part # | JETCOM |
| Series | JETCOM self-priming centrifugal pump |
| Pump body and motor support | Technopolymer |
| Operating range (series) | 2.6 to 21 gpm (10 to 80 L/min), head up to 158 ft (48.3 m), 70 psi |
| Maximum operating pressure | 87 psi (6 bar) |
| Maximum suction depth | 26 ft (8 m) |
| Power supply | 115-230 V 60 Hz dual voltage |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) domestic use; 32 °F to 104 °F (0 °C to 40 °C) other use |
| Maximum ambient temperature | 104 °F (40 °C) |
| Installation | Fixed or portable, horizontal position |
| Special version | Other voltages and/or frequencies on request |
