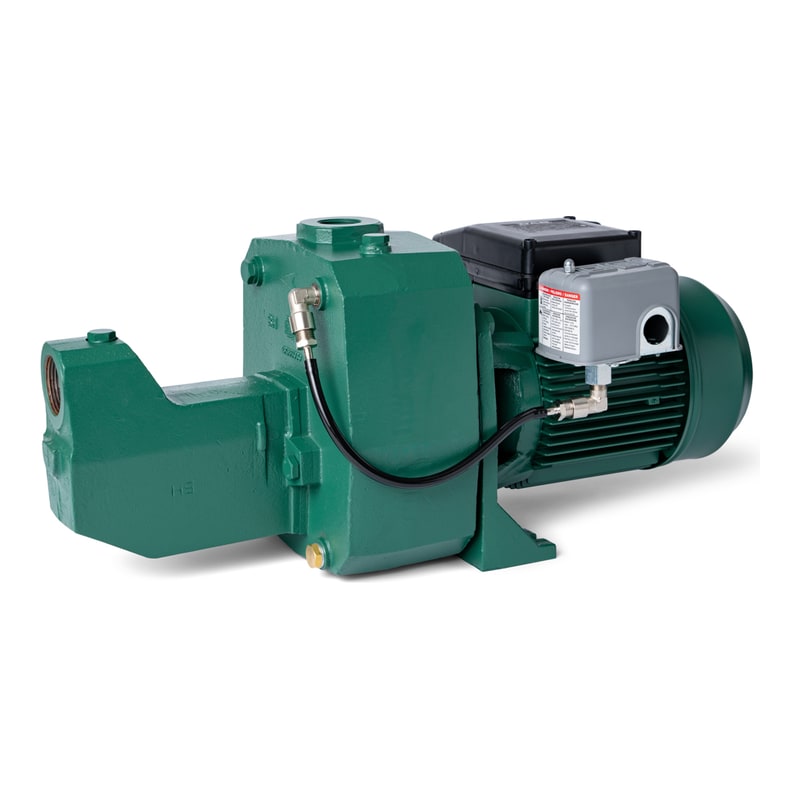

JET 75 PS cast iron jet pump with pressure switch for residential boosting
A self-priming centrifugal jet pump from DAB's cast iron JET line, supplied with a pressure switch for automatic operation. Use it for residential pressure boosting, small to medium irrigation systems and garden watering. The internal ejector and high suction capacity make it forgiving on installs where the water level sits below the pump.
Sizing
- JET family covers 2 to 46 gpm with head up to 203 ft (62 m), 88 psi
- Suction depth up to 26 ft (7.9 m); maximum operating pressure 118 psi
- JET 75 runs on 115-230 V 60 Hz dual voltage
- This model's own flow and head are on the spec sheet under Downloads
Installation
Fixed or portable, in a horizontal position. Water should be clean, non-viscous and chemically neutral, from 32 °F to 95 °F (0 °C to 35 °C) for domestic use or to 120 °F (49 °C) for other uses; keep ambient at 104 °F (40 °C) or below. It can ride through air bubbles, water containing gas and small quantities of sand. Other voltages and frequencies are available on request.

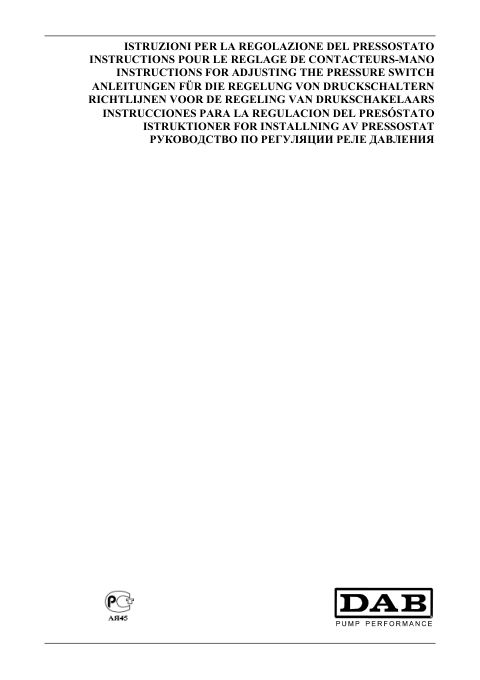

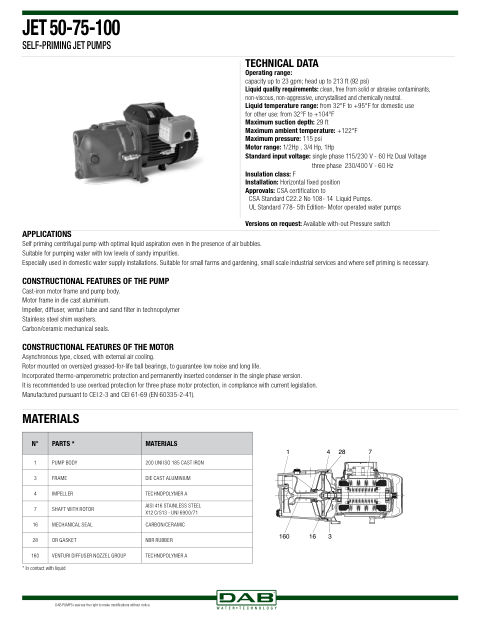

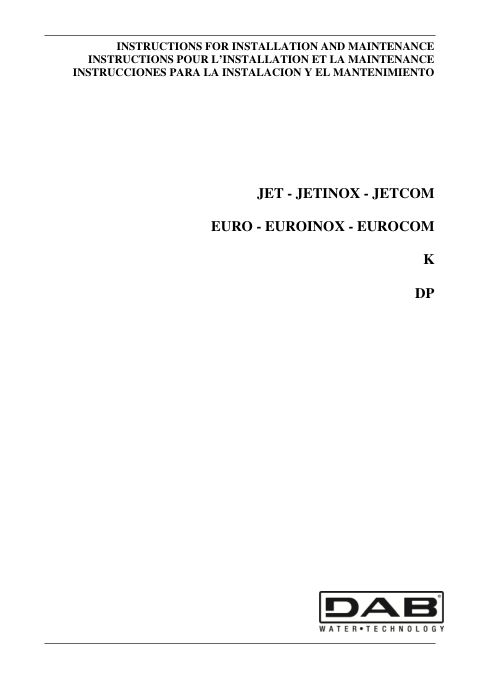

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Pump body and motor support in cast iron
- Internal ejector
- Fan guard designed to also function as air conveyor
- Interchangeable pump body
- Able to handle water containing gas
- Very high suction capacity
- Head up to 203 ft (62 m)
- Operates in the presence of air bubbles and small quantities of sand
| Brand | DAB |
|---|---|
| Manufacturer part # | JET 75 PS |
| Series | JET-MP self-priming centrifugal pump |
| Pressure switch | Included (PS version) |
| Pump body and motor support | Cast iron |
| Operating range (series) | 2 to 46 gpm, head up to 203 ft (62 m), 88 psi |
| Maximum operating pressure | 118 psi |
| Maximum suction depth | 26 ft (7.9 m) |
| Power supply | 115-230 V 60 Hz dual voltage (JET 50, 75 and 100) |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) domestic use; 32 °F to 120 °F (49 °C) other uses |
| Maximum ambient temperature | 104 °F (40 °C) |
| Installation | Fixed or portable, horizontal position |
| Special version | Other voltages and/or frequencies on request |
