JETCOM 132 M 115-230/60 NPT - 1.36 HP - DAB PUMPS

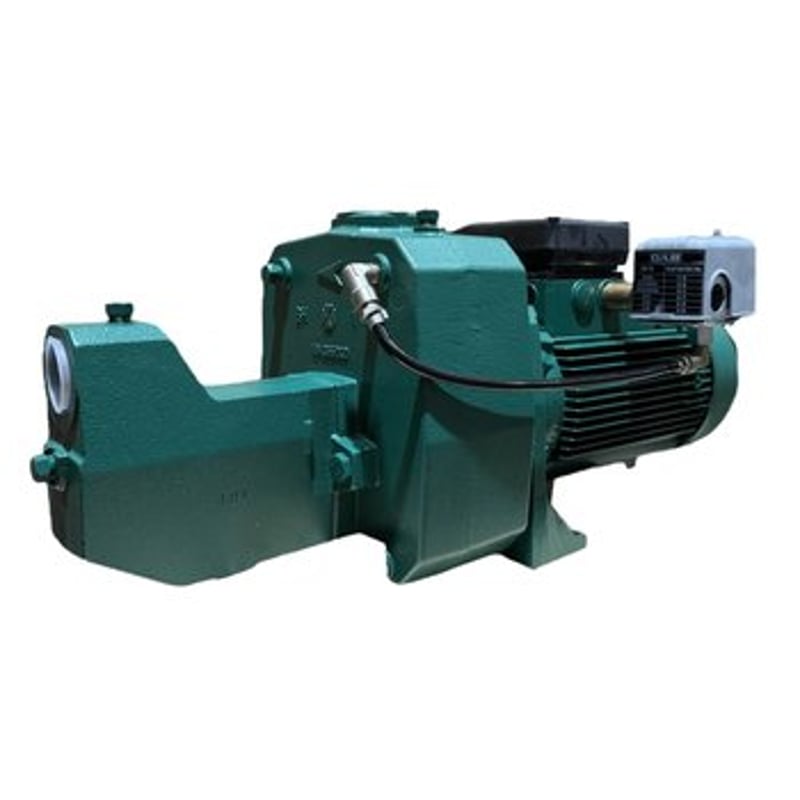

DAB JET 200 2 HP Cast Iron Jet Pump with Pressure Switch, 230V — high-output self-priming pump for demanding residential and light commercial supply.
OverviewThe DAB JET 200 is a 2 HP cast iron self-priming shallow-well jet pump delivering up to 46.2 GPM at a maximum head of 203 ft, with an integrated pressure switch for automatic system control. Its high output suits large homes with multiple bathrooms and irrigation systems, commercial booster stations, and secondary water supply for agricultural buildings. 230V single-phase supply is required.Heavy-duty cast iron hydraulic body and impeller for extended service life under high-cycle commercial conditions. TEFC motor, 230V, 1-phase, 60 Hz. Factory-fitted pressure switch, field-adjustable. 1¼″ NPT suction and discharge ports. Pair with a large-volume bladder pressure tank to reduce pump cycle frequency. Maximum suction lift 25 ft for shallow-well or surface-source applications.
Specifications

HP	2 HP
Max flow	46.2 GPM
Max head	203 ft
Voltage	230V, 1-phase, 60 Hz
Includes	Integral pressure switch
Connections	1¼″ NPT
Body material	Cast iron
Part No.	DAB-JET200-PS
