Cast iron self-priming jet pump with pressure switch for home boosting and irrigation

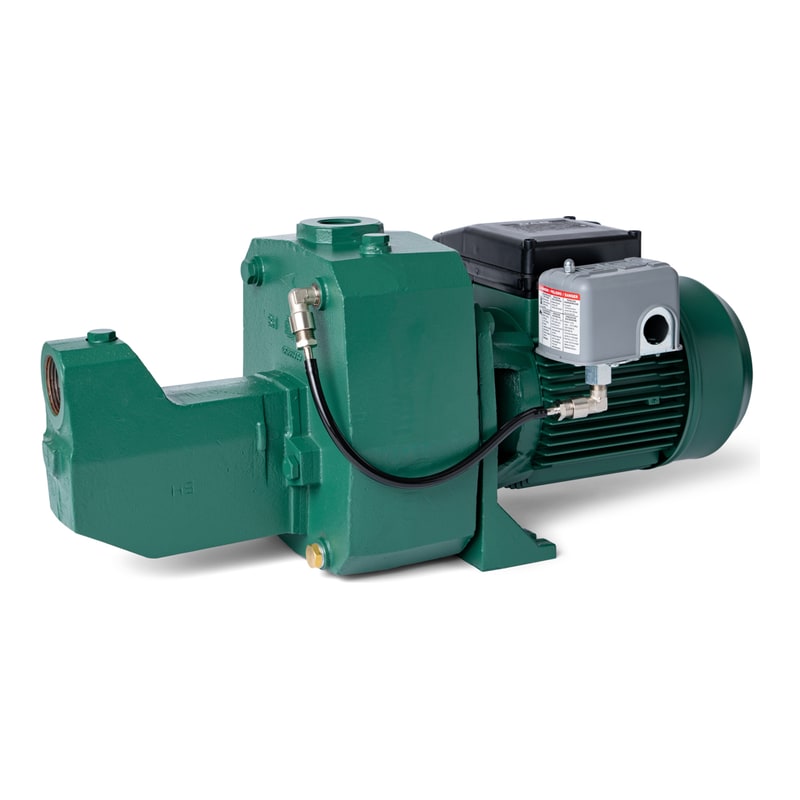

The DAB JET 100 PS is a self-priming centrifugal jet pump with a cast iron body, an internal ejector and a pressure switch. It suits residential pressure boosting, small to medium irrigation systems and gardening. It copes with air bubbles and small amounts of sand without losing prime.
Sizing
- JET family covers 2 to 46 gpm with head up to 203 ft (62 m), 88 psi
- Suction depth up to 26 ft (7.9 m); maximum operating pressure 118 psi
- JET 50, 75 and 100 run on 115-230 V 60 Hz dual voltage
- This model's own flow and head are on the spec sheet under Downloads
Installation
Mount it fixed or portable, horizontally. Water should be clean and non-aggressive, from 32 °F to 95 °F (0 °C to 35 °C) for domestic use or to 120 °F (49 °C) for other uses, with ambient up to 104 °F (40 °C). The fan guard doubles as an air conveyor for motor cooling, the pump body is interchangeable, and components are standardized for easy spare parts. Other voltages and frequencies are available on request.

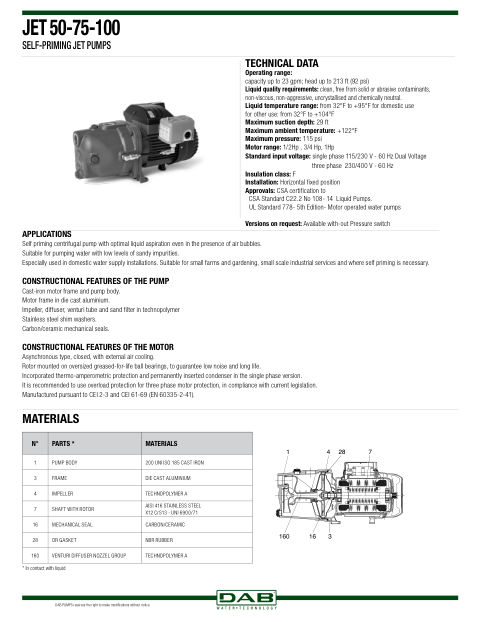

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Pump body and motor support in cast iron
- Internal ejector
- Fan guard designed to also function as air conveyor
- Interchangeable pump body
- Able to handle water containing gas
- Very high suction capacity
- Head up to 203 ft (62 m)
- Operates in the presence of air bubbles and small quantities of sand
| Brand | DAB |
|---|---|
| Manufacturer part # | JET 100 PS |
| Series | JET-MP self-priming centrifugal pump |
| Pressure switch | Included (PS version) |
| Pump body and motor support | Cast iron |
| Operating range (series) | 2 to 46 gpm, head up to 203 ft (62 m), 88 psi |
| Maximum operating pressure | 118 psi |
| Maximum suction depth | 26 ft (7.9 m) |
| Power supply | 115-230 V 60 Hz dual voltage (JET 50, 75 and 100) |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) domestic use; 32 °F to 120 °F (49 °C) other uses |
| Maximum ambient temperature | 104 °F (40 °C) |
| Installation | Fixed or portable, horizontal position |
| Special version | Other voltages and/or frequencies on request |
