EUROINOX 50/506 M DV - 1.5 HP - DAB PUMPS
Availability by branch Checking stockCurrent stock

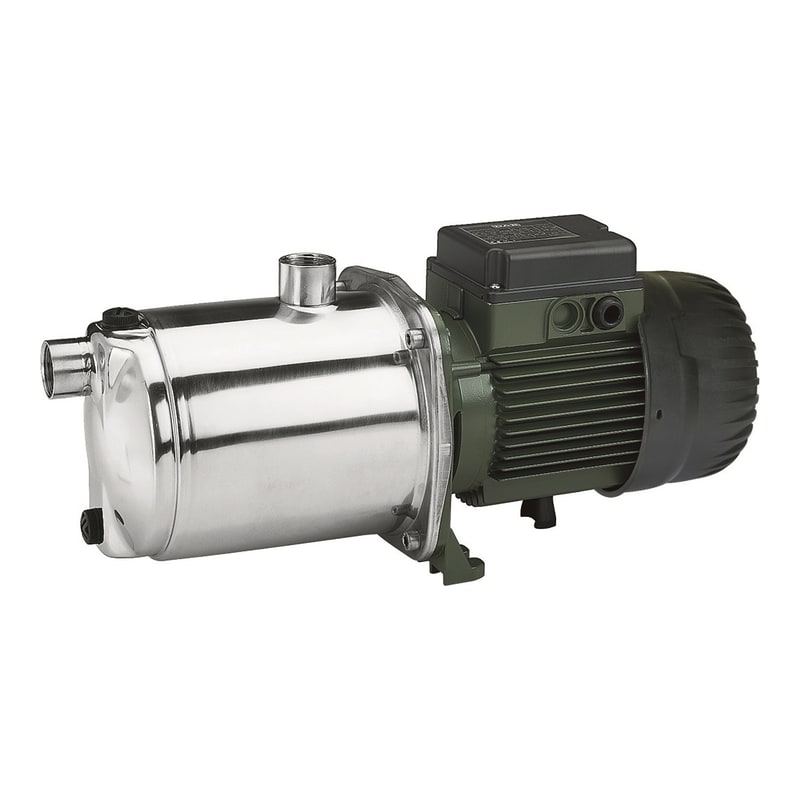

Euroinox stainless steel multistage pump for pressure boosting and sprinklers
The DAB Euroinox is a horizontal multistage centrifugal pump with a stainless steel body, built to run quietly on home water supply, garden irrigation and sprinkler pressurization jobs. It runs on 115 V or 230 V 60 Hz. Its own size and rating are in the product title.
Series performance
- From 1 to 32 gpm (0.6 to 7.2 m³/h) with head up to 236 ft (72 m)
- Operating pressure to 116 psi (8 bar)
- Maximum suction depth 26 ft (8 m)

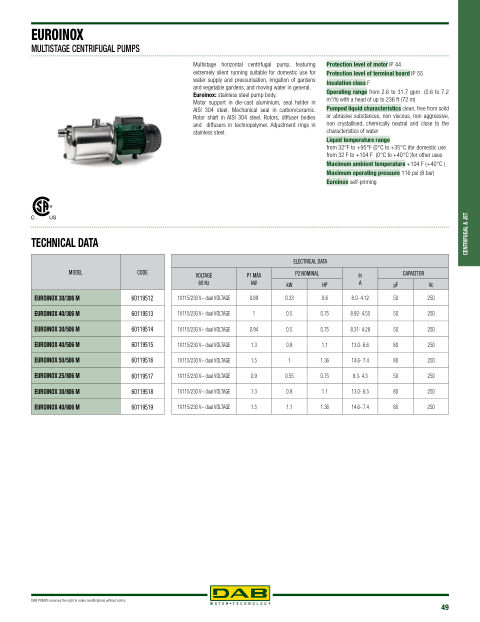

- For this model's own flow and head, see the spec sheet under Downloads
Installation and build
Install it fixed or portable in a horizontal position. It handles clean water close to the characteristics of water, from 32 °F to 95 °F (0 °C to 35 °C) for domestic use and to 104 °F (40 °C) for other uses. Aluminium motor support, AISI 304 shaft and seal holder, carbon/ceramic mechanical seal and technopolymer rotors keep it light and corrosion resistant. Other voltages and frequencies are available on request.

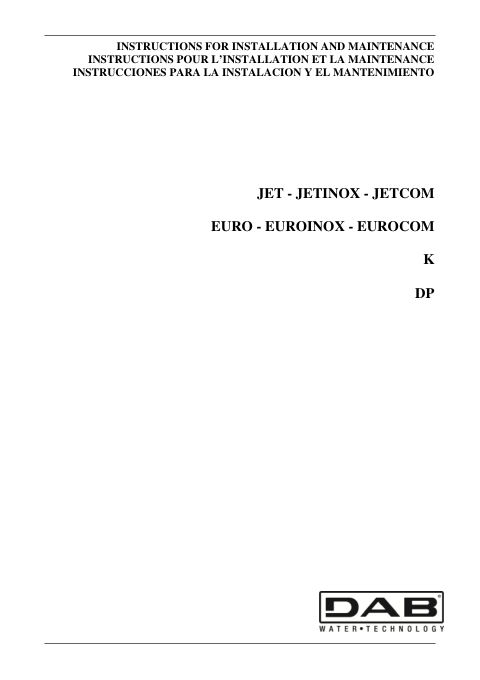

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Multistage centrifugal electric pump
- Pump body in stainless steel
- Built-in capacitor and single-phase version complete with thermal and current overload protection
- The special design makes these pumps exceptionally silent-running.
- High pressures of up to 8 bar can be reached.
- Optimal motor cooling
- Reliable
- Optimal hydraulic performance
| Brand | DAB |
|---|---|
| Manufacturer part # | EUROINOX |
| Type | Multistage horizontal centrifugal pump |
| Operating range (series) | 1 to 32 gpm (0.6 to 7.2 m³/h), head up to 236 ft (72 m), 102 psi |
| Maximum operating pressure | 116 psi (8 bar) |
| Maximum suction depth | 26 ft (8 m) |
| Power supply | 115 V / 230 V 60 Hz dual voltage |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) domestic use; 32 °F to 104 °F (0 °C to 40 °C) other uses |
| Maximum ambient temperature | 104 °F (40 °C) |
| Pump body | Stainless steel |
| Motor support | Die-cast aluminium |
| Seal holder and rotor shaft | AISI 304 steel |
| Mechanical seal | Carbon/ceramic |
| Rotors, diffuser bodies and diffusers | Technopolymer |
| Adjustment rings | Stainless steel |
| Installation | Fixed or portable, horizontal position |
| Motor protection | Built-in capacitor; single phase version has thermal and current overload protection |
