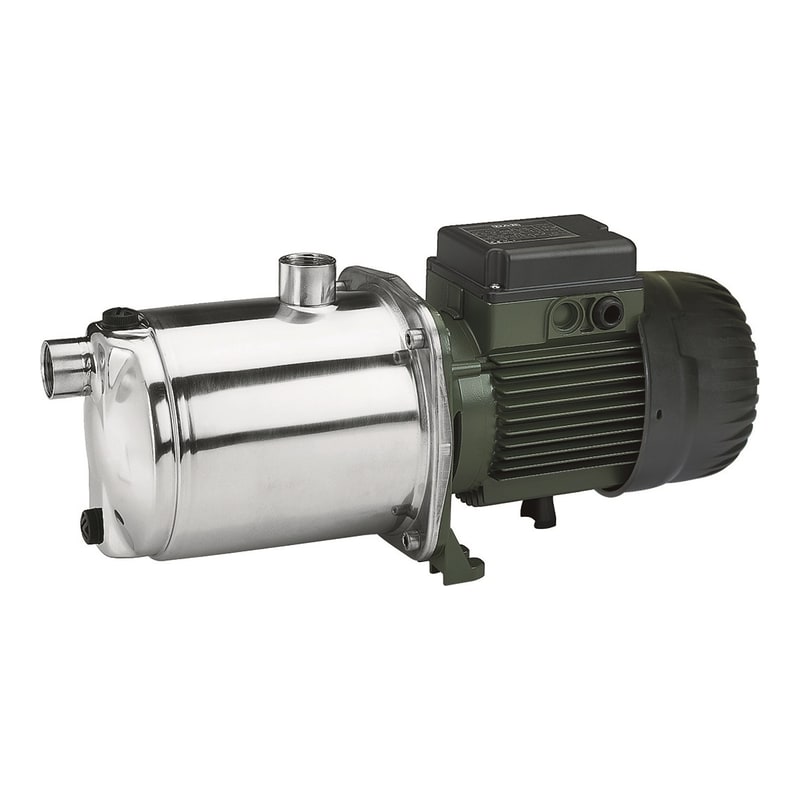

Stainless steel multistage horizontal pump for home water supply and irrigation
A quiet multistage centrifugal pump with a stainless steel body, made for domestic water supply and pressurization, garden and vegetable garden irrigation, sprinkler pressurization and general water moving. Dual voltage 115 V / 230 V 60 Hz means one pump covers either supply. The size for this listing is in the product title.
Series performance
- 1 to 32 gpm (0.6 to 7.2 m³/h), head up to 236 ft (72 m)
- Maximum operating pressure 116 psi (8 bar)
- Suction depth up to 26 ft (8 m)

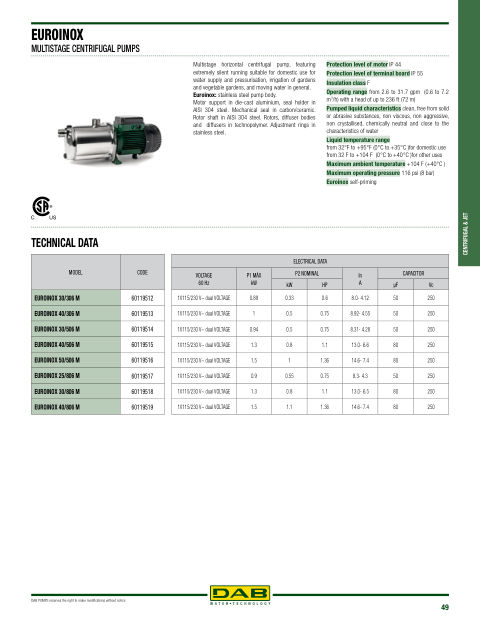

- This model's own flow and head are on the spec sheet under Downloads
Installation and build
Mount it fixed or portable, in a horizontal position. Water must be clean, free of solids and abrasives, up to 95 °F (35 °C) for domestic use or 104 °F (40 °C) for other uses. The motor support is die-cast aluminium, the shaft and seal holder AISI 304, the mechanical seal carbon/ceramic, and the rotors and diffusers technopolymer. The single phase version has a built-in capacitor with thermal and current overload protection.

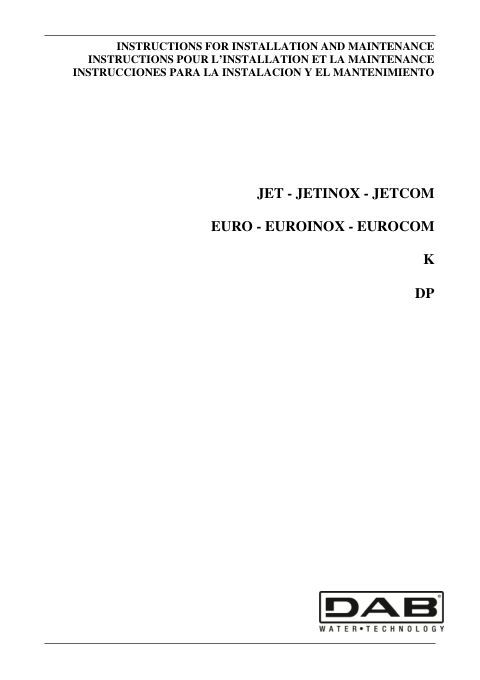

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Multistage centrifugal electric pump
- Pump body in stainless steel
- Built-in capacitor and single-phase version complete with thermal and current overload protection
- The special design makes these pumps exceptionally silent-running.
- High pressures of up to 8 bar can be reached.
- Optimal motor cooling
- Reliable
- Optimal hydraulic performance
| Brand | DAB |
|---|---|
| Manufacturer part # | EUROINOX |
| Type | Multistage horizontal centrifugal pump |
| Operating range (series) | 1 to 32 gpm (0.6 to 7.2 m³/h), head up to 236 ft (72 m), 102 psi |
| Maximum operating pressure | 116 psi (8 bar) |
| Maximum suction depth | 26 ft (8 m) |
| Power supply | 115 V / 230 V 60 Hz dual voltage |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) domestic use; 32 °F to 104 °F (0 °C to 40 °C) other uses |
| Maximum ambient temperature | 104 °F (40 °C) |
| Pump body | Stainless steel |
| Motor support | Die-cast aluminium |
| Seal holder and rotor shaft | AISI 304 steel |
| Mechanical seal | Carbon/ceramic |
| Rotors, diffuser bodies and diffusers | Technopolymer |
| Adjustment rings | Stainless steel |
| Installation | Fixed or portable, horizontal position |
| Motor protection | Built-in capacitor; single phase version has thermal and current overload protection |
