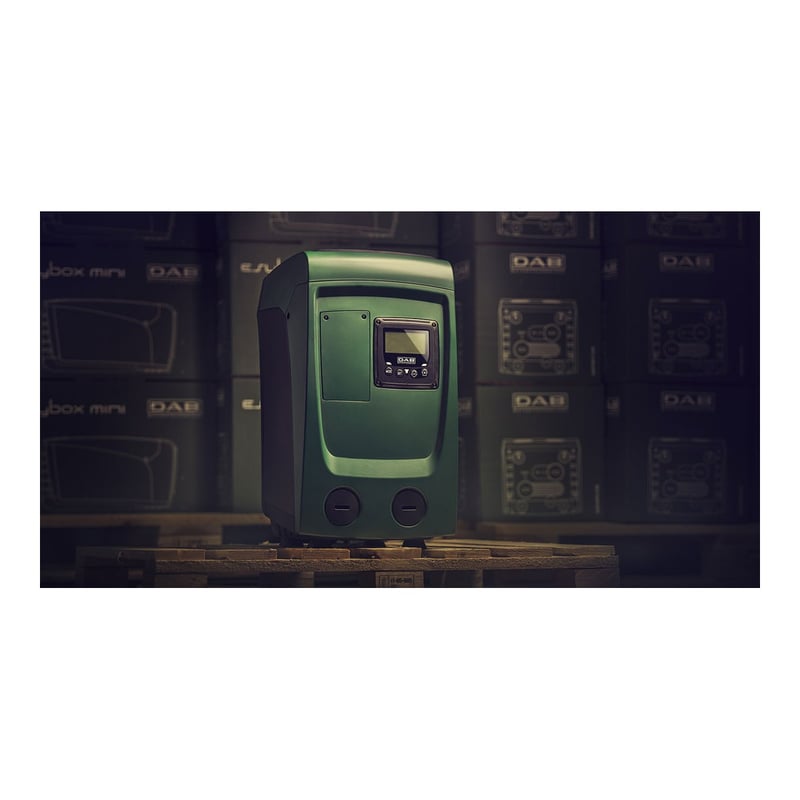

Compact variable speed booster pump for single-residence water pressure
The EsyBox Mini 3 packs the pump, inverter controller, pressure and flow sensors, LCD display, 1/4 US gallon (about 0.946 L) expansion vessel and check valve into one unit, so there are no extra parts to source for a house pressure system. Pressure is adjustable from 15 psi up to the 79 psi maximum setting.
Performance
- Up to 22 gpm (80 L/min) and 183 ft (56 m) of head
- Self-priming from 26 ft (8 m) in less than 5 minutes
- Maximum pressure 108 psi (7.5 bar)
- Handles drinking water and household use, garden watering included, up to 95 °F (35 °C)
Installation
Two suction and delivery ports let you mount it horizontally or vertically, and the compact body fits tight spaces, even under a kitchen sink. The Esywall wall bracket frees up floor space, and the EsyTwin Mini accessory adds more layout options. Dry run and antifreeze protections are built in, and the motor is rated IPX4. The maker still recommends an extra pressure tank to cut stop-starts and absorb water hammer.
Approvals

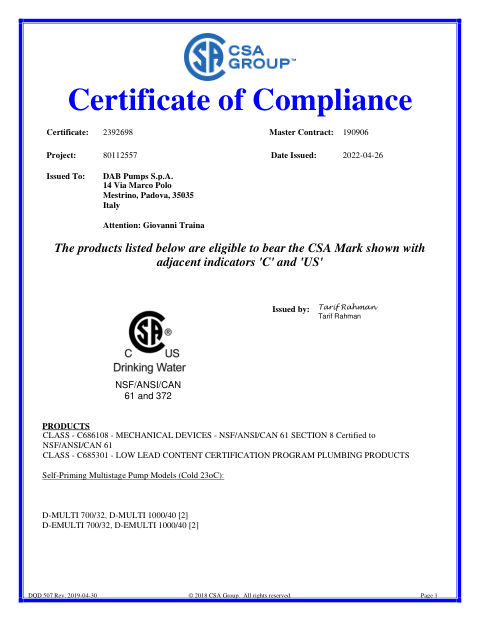

CSA (C22.2 No 108-14), UL 778 and NSF/ANSI 61 and 372.

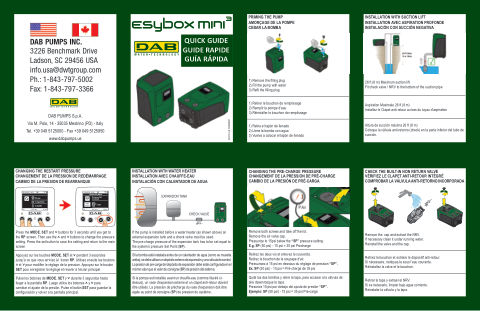

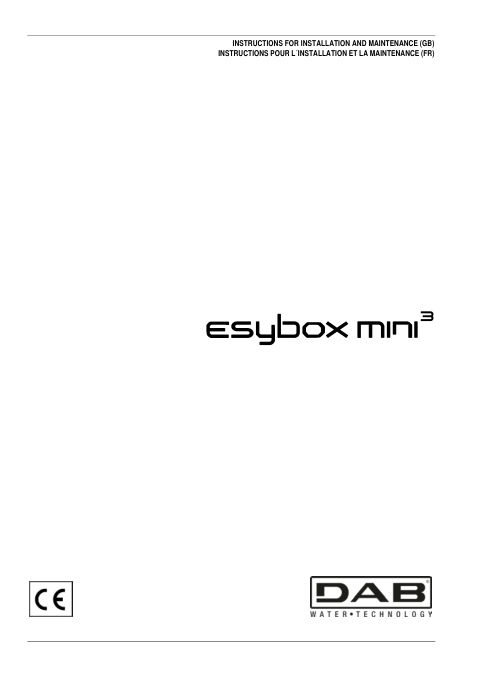

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- A high-frequency self-priming double impeller pump with inverter electronics, pressure and flow sensors, adjustable high-resolution LCD display, 1/4 gallon built-in expansion vessel and cartridge check valve.
- The double suction and delivery ports allow both vertical and horizontal installation.
- Thanks to its compact size, installation is also possible in difficult places without high air exchange.
- The Esywall wall bracket allows wall installation, saving even more room.
- Self-priming pump with a capability of 26 ft in less than 5 minutes.
- Water-cooled motor and anti-vibration feet.
- Fitted with all the safety protections, particularly the dry run and antifreeze protections.
- An additional pressure tank is recommended to reduce stop starts while protecting the system from sudden pressure fluctuations, water hammer and thermal expansion.
| Brand | DAB |
|---|---|
| Manufacturer part # | ESYBOX MINI 3 |
| Capacity | Up to 22 gpm (80 L/min) |
| Head | Up to 183 ft (56 m), 80 psi |
| Pressure adjustment | 15 psi up to the 79 psi (5.5 bar) maximum setting |
| Maximum pressure | 108 psi (7.5 bar) |
| Maximum suction depth | 26 ft (8 m), self-priming in less than 5 minutes |
| Built-in expansion vessel | 1/4 US gallon (about 0.946 L) |
| Pumped liquid | Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallized and chemically neutral |
| Liquid temperature range | 32 °F to 95 °F (0 °C to 35 °C) domestic use; 32 °F to 104 °F (0 °C to 40 °C) other use |
| Maximum ambient temperature | 122 °F (50 °C) |
| Motor protection rating | IPX4 |
| Insulation class | F |
| Installation | Horizontal or vertical fixed position |
| Included | Self-priming double impeller pump, inverter electronics, pressure and flow sensors, LCD display, built-in expansion vessel, cartridge check valve |
| Approvals | CSA (C22.2 No 108-14), UL 778 5th edition, NSF/ANSI 61 and 372 |
