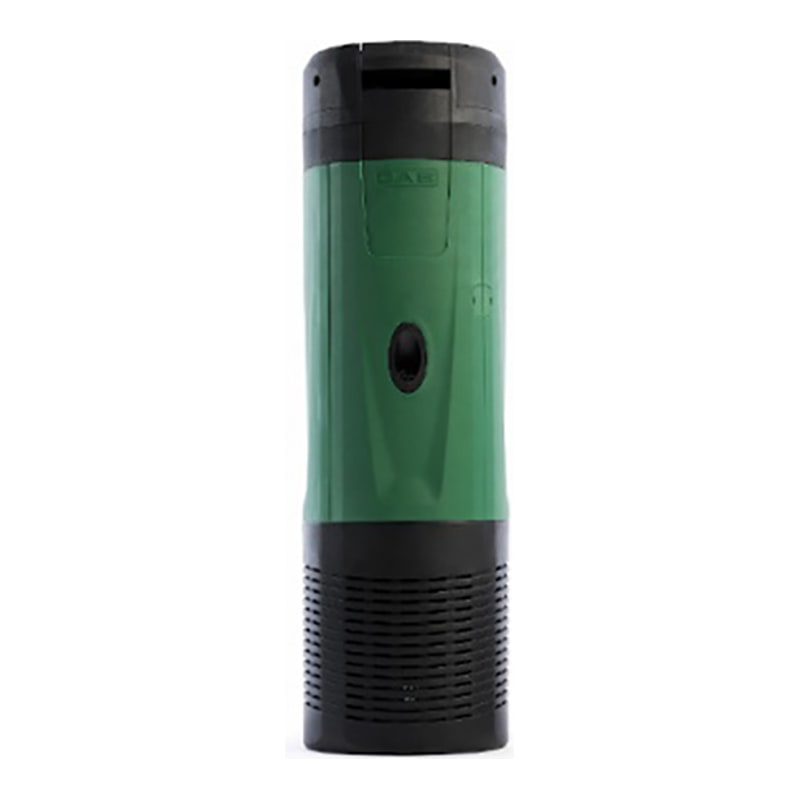

DTron 2 electronic submersible pump for wells, tanks and cisterns
A submersible pump with the pressure switch, flow switch, check valve and expansion vessel built in. It starts and stops itself and protects against dry running, so there is no external tank or controller to add. Use it to pressurize house supply from a well, tank or cistern, reuse stored rainwater, or feed garden and irrigation systems.
Series figures
- Up to 32.1 gpm (7.3 m³/h) and 147 ft (45 m) of head
- Immersion to 49 ft (15 m); 49 ft (15 m) cable with plug
- Cut-in at 34.8 psi (2.4 bar); 1-1/4 in NPT thread
- 115 V or 230 V 60 Hz single phase options
- This model's own figures are on the spec sheet under Downloads
Installation
Fixed, horizontal or vertical, submerged or semi-submerged. The whole pump is IP68, and the optional DOC68 accessory turns it into an IP68 surface pump. The NFC pocket takes a float sensor without opening the pump. The modular design lets you take apart the hydraulic part, motor, electronics and filter separately. Pumped water must be clean and free of solids. Certified CSA and CSAus; NSF 61 and 372 apply to the drinking water model only.

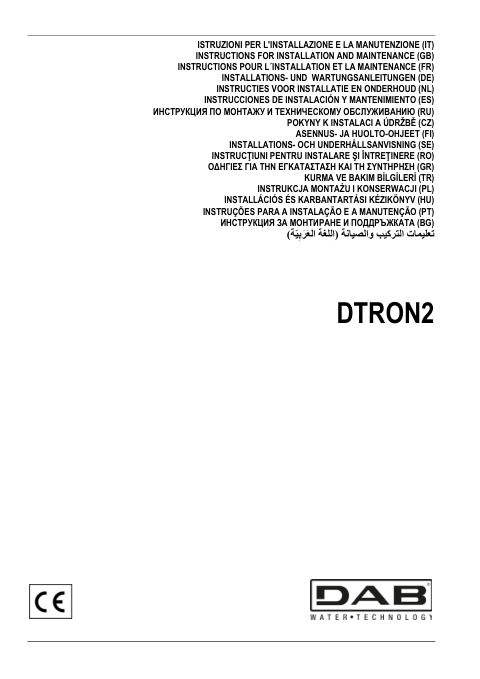

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
- Technopolymer pump body to resist corrosion and oxidation.
- Integrated check valve and integrated debris filter.
- Overpressure valve to resist the formation of ice in the piping and to protect from water hammer.
- Air-vent valve on the pump body improves priming during the first installation or after emptying the tank or well.
- Integrated expansion vessel sized to prevent the pump from cycling in the event of small leakages and to compensate for water hammer. No maintenance or recharging is required.
- Double mechanical seal in oil chamber keeps the pump watertight.
- The electronic operation allows the pump to start and stop autonomously by the system requirements and protects against dry run.
- NFC pocket for a floater sensor (supplied separately) which can be connected without opening the pump, maintaining a watertight seal.
| Brand | DAB |
|---|---|
| Manufacturer part # | DTRON 2 |
| Maximum flow (series) | 32.1 gpm (7.3 m³/h) |
| Maximum head (series) | 147 ft (45 m) |
| Maximum immersion depth | 49 ft (15 m) |
| Cut-in pressure setting | 34.8 psi (2.4 bar, +/-0.2) |
| Thread | 1-1/4 in NPT |
| Pumped liquid | Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral |
| Free passage | 0.08 in (2 mm) |
| Minimum suction depth | 4.33 in (110 mm) |
| Minimum water level | 1.38 in (35 mm) |
| Liquid temperature range | 32 °F to 122 °F (0 °C to 50 °C) |
| Ambient temperature range | 32 °F to 122 °F (0 °C to 50 °C) |
| Impeller material | Technopolymer and AISI 304 stainless steel |
| Maximum starts | 60 per hour |
| Non-stop service | Yes |
| Protection class | IP68 |
| Motor insulation class | F |
| Power cable | 49 ft (15 m) with plug |
| Power input | Single phase, 115 V 60 Hz and 230 V 60 Hz options |
| Maximum pump diameter | 7.28 in (185 mm) |
| Installation | Fixed, horizontal or vertical, submerged or semi-submerged. On the surface or outside upright with the DOC68 accessory (sold separately) |

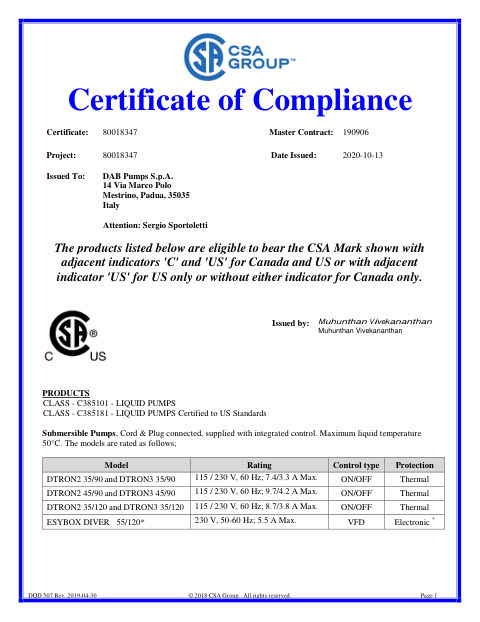

| Certifications | CSA, CSAus; NSF 61 and 372 on the drinking water model only |
