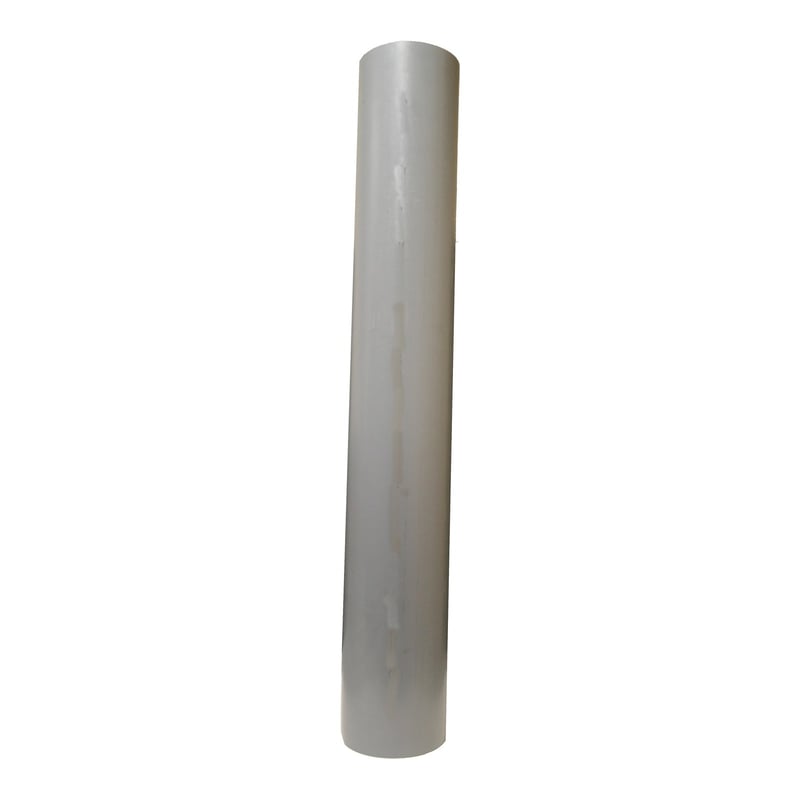

CPVC Pipe 4 Sch80

CPVC Schedule 80 Pipe, 4" — 320 PSI rated chlorinated PVC, ASTM F441; for hot-water service, chemical-feed piping, and corrosive-fluid handling up to 200°F.
Overview CPVC Schedule 80 in 4" (OD 4.500", wall 0.337") is rated at 320 PSI at 73°F and remains serviceable up to 200°F, making it the standard for domestic hot-water distribution, solar thermal piping, and chemical-feed lines where standard PVC would soften or fail. In irrigation and water feature contexts, CPVC is used on pump discharge lines that handle warm water from solar-heated storage, and on chemical-injection headers where chlorine or acid concentrations would degrade standard PVC over time. Manufactured to ASTM F441, CPVC Schedule 80 joins with dedicated CPVC solvent cement and primer; do not use standard PVC cement, which does not achieve a compatible bond. The grey colour (same as PVC Schedule 80) requires field identification via marking or labelling when mixed-material systems are present. NSF 61 listed for potable hot water. CPVC Schedule 80 is compatible with CPVC-rated valves and fittings; standard PVC Schedule 80 fittings share the same OD and can be used with appropriate CPVC cement.
Specifications

Nominal size	4"
Outside diameter	4.500"
Wall thickness	0.337"
Pressure rating	320 PSI at 73°F
Max temperature	200°F (93°C)
Standard	ASTM F441
Listing	NSF 61
Material	CPVC (chlorinated polyvinyl chloride)
Part No.	CPVC040SCH80
