FRANKLIN ELECTRIC SALES INC.

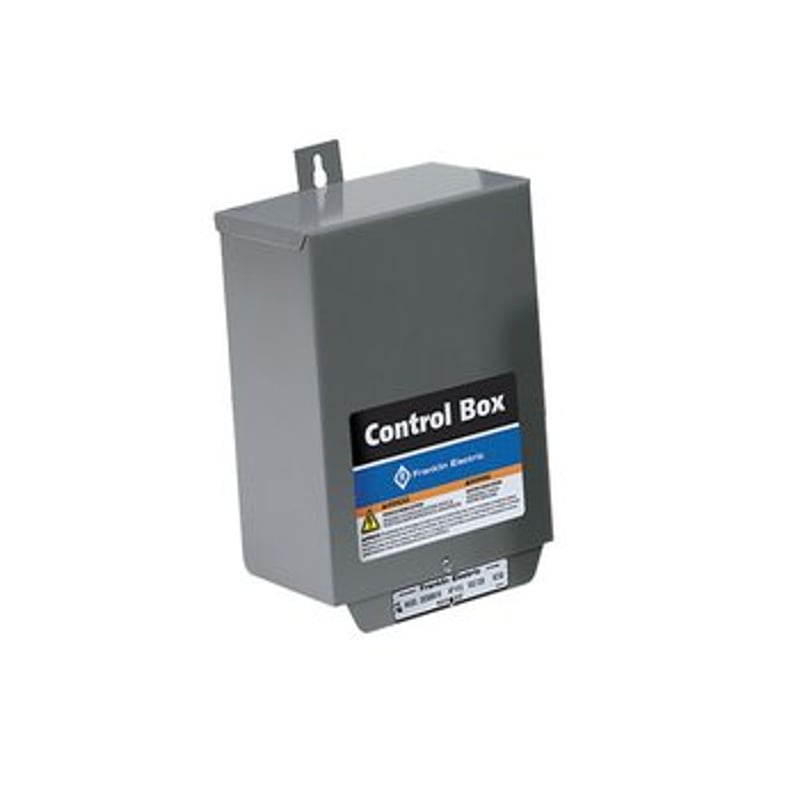

2HP CONTROL BOX, STANDARD 4" 3-Wire 230V 60HZ
$478.00
List price, excluding tax
Sign in to see your account pricing. Contract customers pay less than list on most items.
Availability by branch Checking stockCurrent stock
KelownaChecking…
WestsideChecking…
BurnabyChecking…
VancouverChecking…
LangleyChecking…
CalgaryChecking…
KelownaIn stock
WestsideOut of stock
BurnabyOut of stock
VancouverOut of stock
LangleyOut of stock
CalgaryOut of stock
2 hp, 230 V standard control box for 3-wire single-phase submersible pumps
A Type 3R Franklin Electric standard control box for 3-wire, single-phase submersible motors, rated 2 hp (1.5 kW) at 230 VAC and 60 Hz. It suits systems that switch through a standard or heavy-duty pressure switch, a level switch or another pilot device.
Sizing
- Nominal 10 A, maximum 13.2 A
- Designed and optimized for Franklin three-wire single-phase motors
- Standard type has no built-in contactor. Deluxe boxes add a magnetic line contactor matched to the motor, so step up to a Deluxe box where one is needed
Installation
- Bottom knockouts for 1", 1.25" and 0.5" conduit, no side knockouts
- Type 3R enclosure, operating range 14 to 122 °F (-10 to 50 °C)
- UL approved
Warranty: 12 months from installation, 24 months from manufacture. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
| Brand | Franklin Electric |
|---|---|
| Manufacturer part # | 2823018110 / CB-2-230-60-S |
| Control box type | Standard (3-wire) |
| Motor rating | 2 hp (1.5 kW) |
| Input voltage | 230 VAC |
| Phase | Single-phase |
| Frequency | 60 Hz |
| Nominal amps | 10 A |
| Maximum amps | 13.2 A |
| Enclosure rating | Type 3R |
| Operating temperature | 14 to 122 °F (-10 to 50 °C) |
| Storage temperature | -13 to 144 °F (-25 to 65 °C) |
| Bottom knockouts | Two 1.31" holes for 1" conduit; one 1.75" knockout for 1.25" conduit; one 0.88" knockout for 0.5" conduit |
| Side knockouts | None |
| Certification | UL |
| Product dimensions | 8.03 × 5.84 × 10.5 in (20 × 15 × 27 cm), L × W × H |
| Package dimensions | 8.13 × 6.25 × 11.25 in (21 × 16 × 29 cm), L × W × H |
| Product weight | 6.75 lb (3.1 kg) |
| Shipping weight | 7 lb (3.2 kg) |
| Warranty | 12 months from installation, 24 months from manufacture |
