NOZZLE #70 9/32

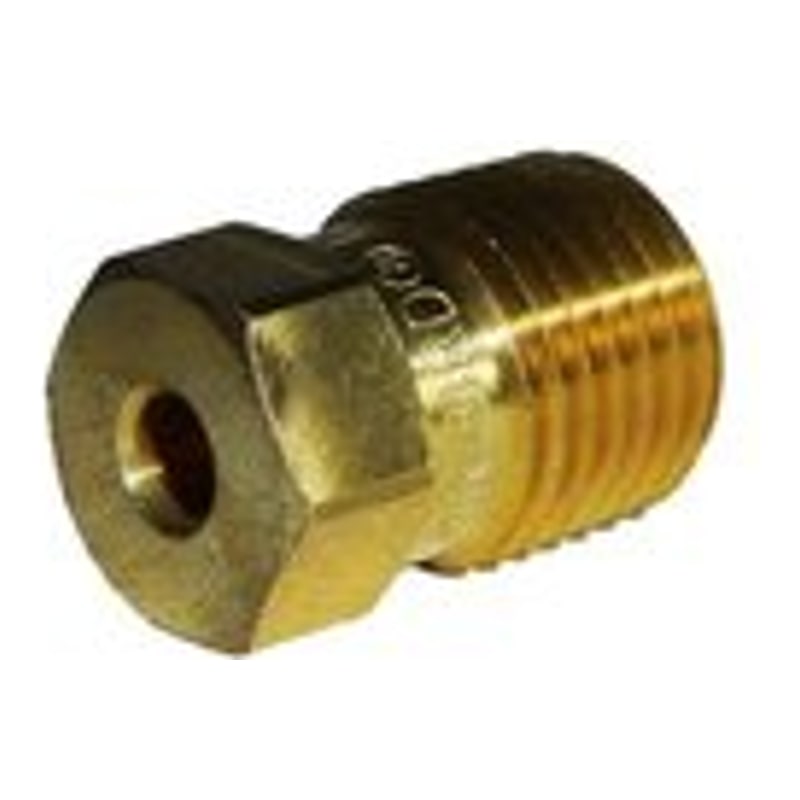

Rain Bird #70 Series Brass Replacement Nozzle — 9/32" Bore, 25° Trajectory
OverviewRain Bird #70-series brass replacement nozzles fit the Rain Bird 70-series large-body impact sprinkler (1" NPT inlet). The #70 series is used in high-volume agricultural and large-area irrigation for maximum throw and coverage. The large bore sizes deliver significantly higher flow rates than smaller series nozzles and are sized for main-line pressure systems.#70-series nozzles seat into the nozzle port of the 70-series impact body. Confirm operating pressure and supply line flow capacity before selecting bore size. Refer to Rain Bird's #70 nozzle performance charts for flow rates at pressure. The 70-series impact is suited to large-acreage field irrigation, orchards, and sports fields where wide-radius, high-volume coverage is required. Nozzles are sold individually.
Specifications

Bore Size	9/32" (0.281")
Thread	Nozzle port per #70 body spec
Trajectory	25°
Compatible	Rain Bird #70-series large-body impact (1" inlet)
Material	Brass
Part No.	BRN-70-9-32
