NOZZLE #30 11/64

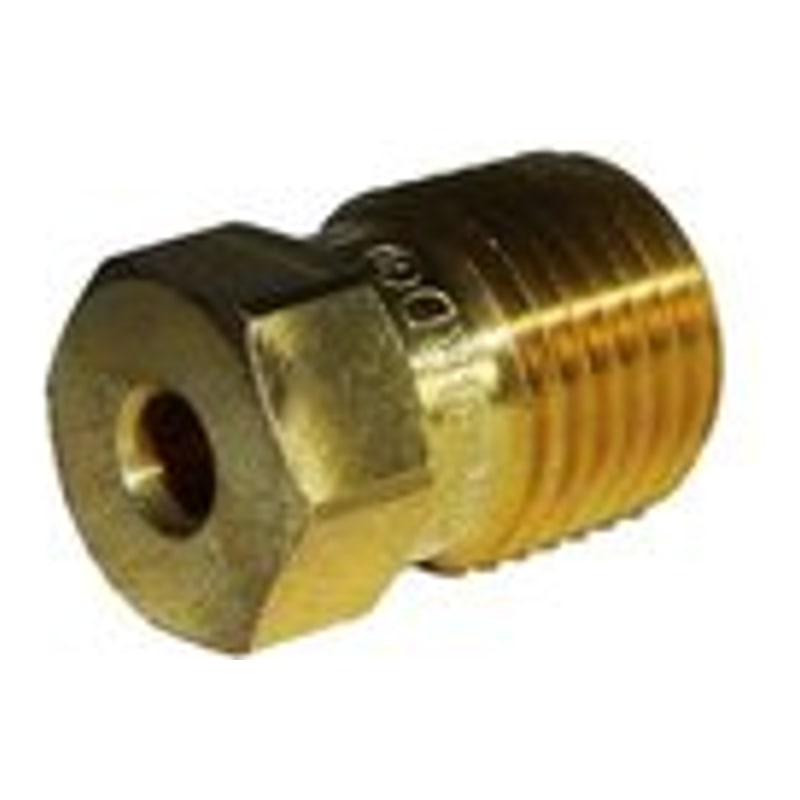

Rain Bird #30 Series Brass Replacement Nozzle — 11/64" Bore, 25° Trajectory
OverviewRain Bird #30-series brass replacement nozzles fit all Rain Bird 30-series impact sprinkler bodies (3/4" NPT inlet). The #30 series is commonly used in agricultural and large-area turf irrigation for medium-to-long radius coverage. Nozzle bore diameter controls flow output at a given pressure — select the bore to match your zone hydraulic design.#30-series nozzles thread into the 1/8" NPT nozzle port on the impact body. Trajectory for the #30 series is approximately 25°. Refer to Rain Bird's published nozzle performance tables for exact flow rates and throw radii at operating pressure. Nozzles are sold individually; order spares to maintain on-site for quick field replacement. Compatible with all Rain Bird 30-series brass and plastic impact bodies.
Specifications

Bore Size	11/64" (0.172")
Thread	1/8" NPT male
Trajectory	25°
Compatible	Rain Bird #30-series impact bodies (3/4" inlet)
Material	Brass
Part No.	BRN-30-11-64
