NOZZLE #20 1/8 LOW ANGLE 7 DEG

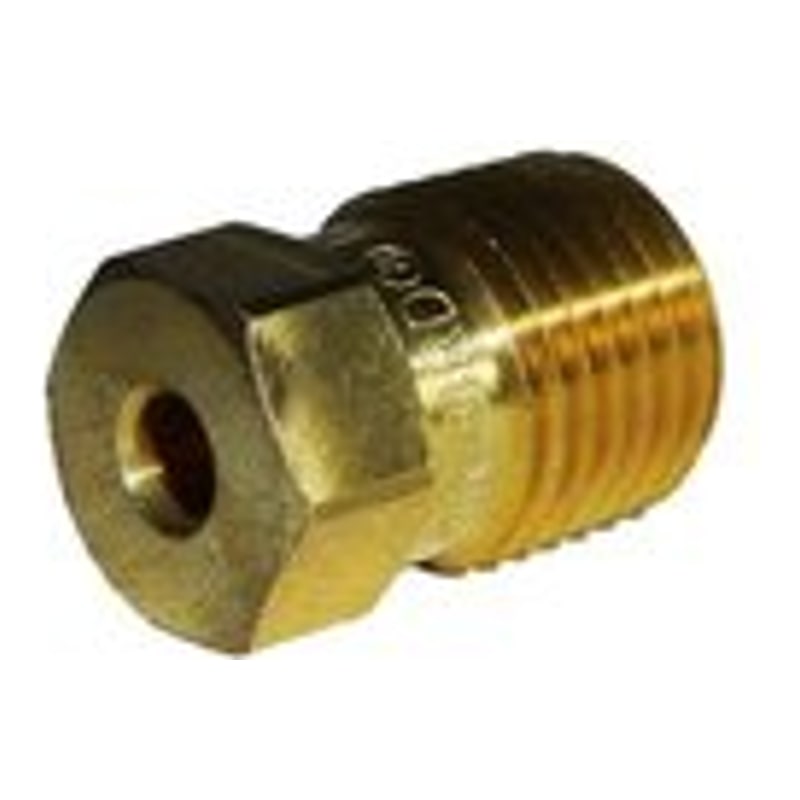

Rain Bird #20 Series Low-Angle Narrow Brass Nozzle — 1/8" Bore, 7° Trajectory
OverviewRain Bird #20-series low-angle brass replacement nozzles are designed for use in windy conditions or under tree canopies where a lower water trajectory is required to maintain uniformity and reduce wind drift. They fit all Rain Bird 20-series impact bodies via the standard 1/8" NPT male thread.The low-angle nozzle projects water at a flatter arc, trading maximum throw distance for improved wind resistance. The 20° variant suits moderate wind conditions; the 7° narrow low-angle variant is used in high-wind sites or under low canopies where minimal trajectory is required. Refer to Rain Bird's low-angle nozzle charts for flow rates and radius at operating pressure. Sold individually.
Specifications

Bore Size	1/8" (0.125")
Thread	1/8" NPT male
Trajectory	7° low angle narrow
Compatible	Rain Bird #20-series impact bodies
Application	High-wind sites, low-clearance canopy irrigation
Material	Brass
Part No.	BRN-20-LAN1-8
