NOZZLE #20 3/32

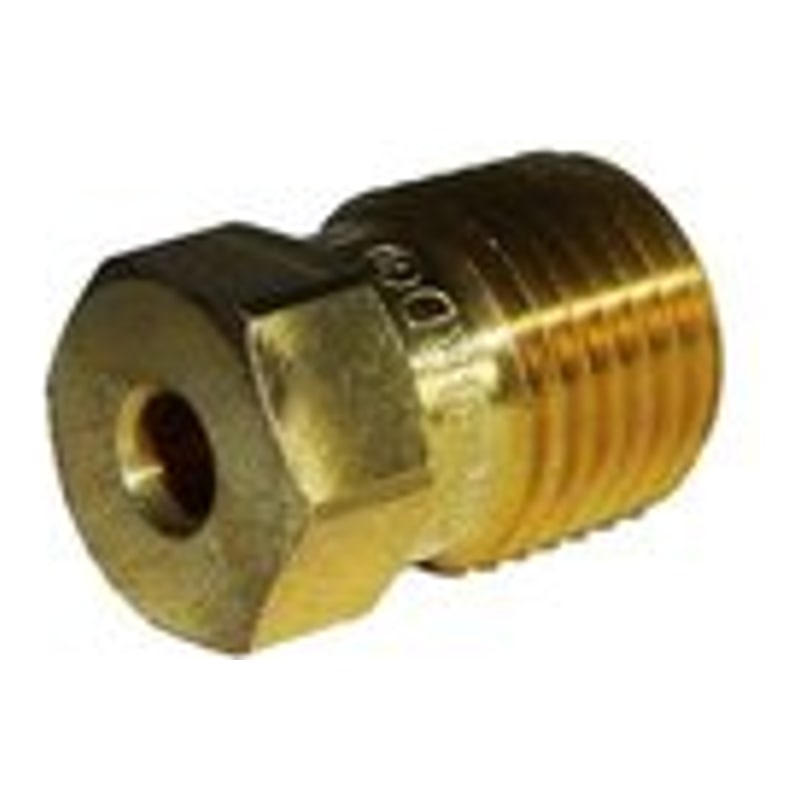

Rain Bird #20 Series Brass Replacement Nozzle — 3/32" Bore, 27° Standard Trajectory
OverviewRain Bird #20-series brass replacement nozzles are direct-fit replacements for all Rain Bird 20-series impact sprinkler bodies. The nozzle bore controls flow rate at a given operating pressure — smaller bores reduce flow and radius for tighter spacings, while larger bores increase throw and output for wider coverage. All nozzles use a standard 1/8" NPT male thread and seat directly into the impact head nozzle port.Standard-trajectory nozzles operate at approximately 27° elevation for maximum throw distance. Select the bore size to match your zone design flow and spacing. Refer to Rain Bird's nozzle performance charts for flow rates at your operating pressure. Nozzles are sold individually and are compatible with all Rain Bird 20-series brass and plastic impact bodies in agricultural and turf irrigation applications.
Specifications

Bore Size	3/32" (0.094")
Thread	1/8" NPT male
Trajectory	27° standard
Compatible	Rain Bird #20-series impact bodies
Material	Brass
Part No.	BRN-20-3-32
