4 in TESLA 4GG submersible motor for deeper wells and larger pumps

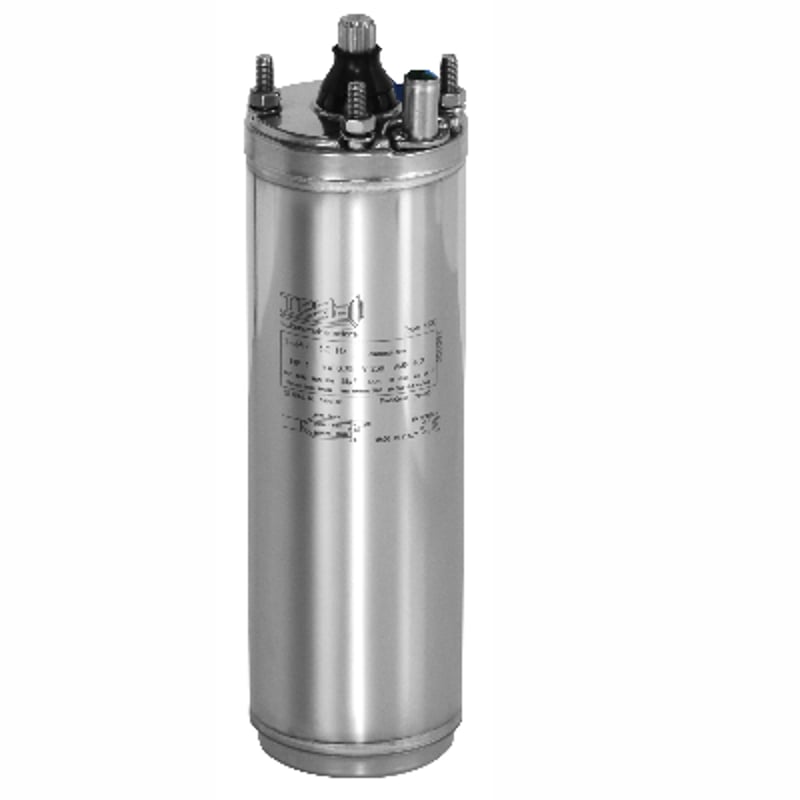

A DAB TESLA 4GG, the 4 in canned-stator submersible motor that DAB offers across single phase and three phase ratings. Horsepower and wiring for this listing are in the product title; the series figures below are not specific to it, and its own are on the spec sheet under Downloads.

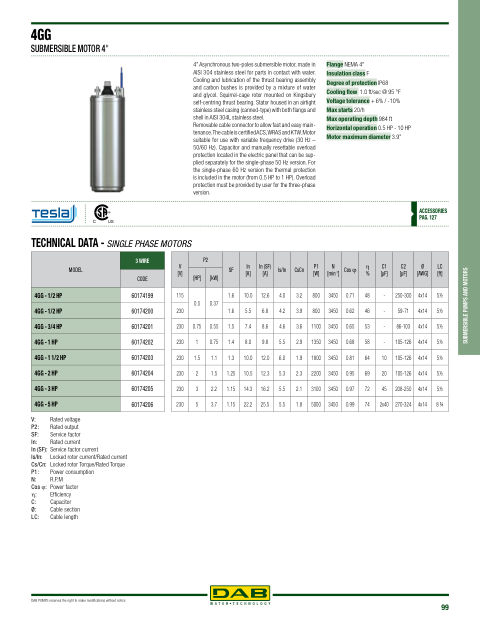

Series ratings
- Single phase 230 V 60 Hz from 0.5 to 5.0 HP
- Three phase 230 V 60 Hz from 0.5 to 7.5 HP, 460 V 60 Hz from 0.5 to 10 HP
- Operating depth to 984 ft (299.9 m), IP68, insulation class F
- Up to 20 starts an hour; horizontal operation across the 0.5 to 10 HP range
Starting and protection
Single phase 4GG motors need a control box, supplied separately: the capacitor and manual-reset overload live in the box, not the motor. On three phase motors the overload protection is up to the installer. Variable frequency drive use is fine at 30 Hz to 50 Hz.
Build and approvals

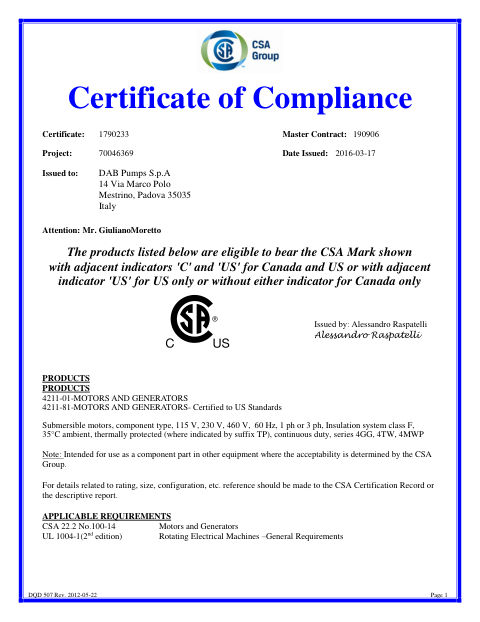

Stainless AISI 304 shell with an AISI 304L casing and coated cast iron housings, a Kingsbury self-centering thrust block, and a removable cable connector for fast service. Certified to CSA and UL, plus NSF 61 and 372 for drinking water. Other voltages and frequencies, and the all-AISI 316 4GX, are available on request.

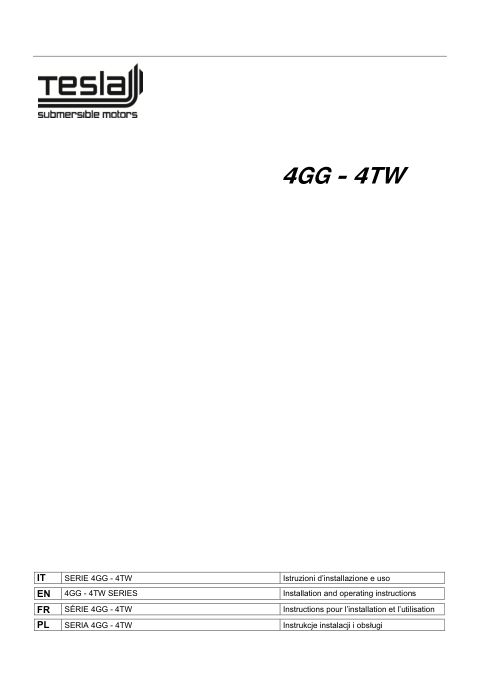

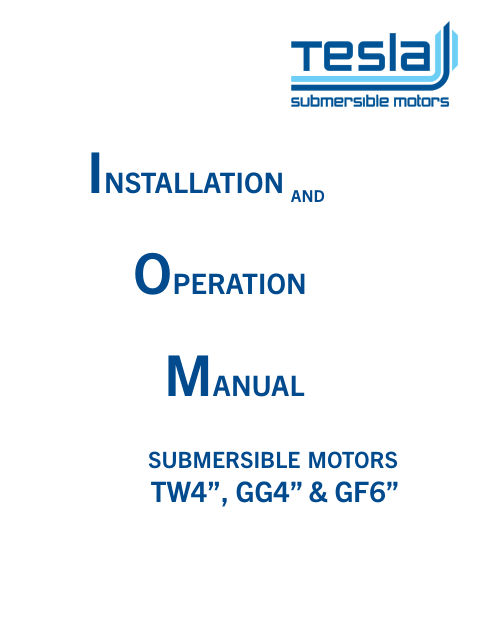

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
| Brand | DAB |
|---|---|
| Manufacturer part # | 4GG |
| Series | TESLA GG 4 in submersible motor |
| Flange | NEMA 4 in |
| Power range, single phase 230 V 60 Hz (series) | 0.5 HP to 5.0 HP |
| Power range, three phase 230 V 60 Hz (series) | 0.5 HP to 7.5 HP |
| Power range, three phase 460 V 60 Hz (series) | 0.5 HP to 10 HP |
| Power range, single phase 115 V 60 Hz (series) | 0.5 HP only |
| Horizontal operation (series) | 0.5 HP to 10 HP |
| Control box | Single phase: capacitor and manual-reset overload are in a separate control box. Three phase: overload protection supplied by the user |
| Degree of protection | IP68 |
| Insulation class | F |
| Maximum operating depth | 984 ft (299.9 m) |
| Minimum cooling flow | 1.0 ft/sec at 95 °F (0.3 m/s at 35 °C) |
| Voltage tolerance | +6% / -10% |
| Maximum starts | 20 per hour |
| Variable frequency drive | Suitable, 30 Hz to 50 Hz |
| Materials | AISI 304 stainless steel external shell and AISI 304L casing, coated cast iron top and bottom housings |
| Other version | 4GX in AISI 316 stainless steel, on request |
| Certifications | Motor and cable certified to CSA and UL; NSF 61 and 372 drinking water standards |
