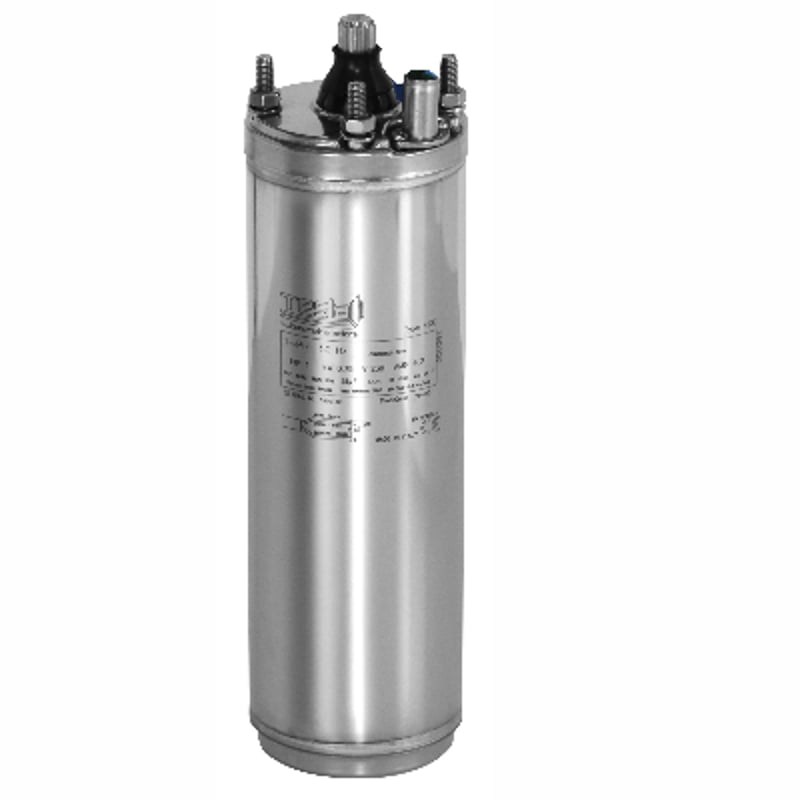

4 in TESLA 4GG submersible motor for well and borehole pumps
A resin-filled, canned-stator 4 in submersible motor from DAB's TESLA line, built to drive 4 in well pumps. The 4GG series covers single phase and three phase ratings; horsepower and wiring for this listing are in the product title, and its own figures are on the spec sheet under Downloads.
Series ratings

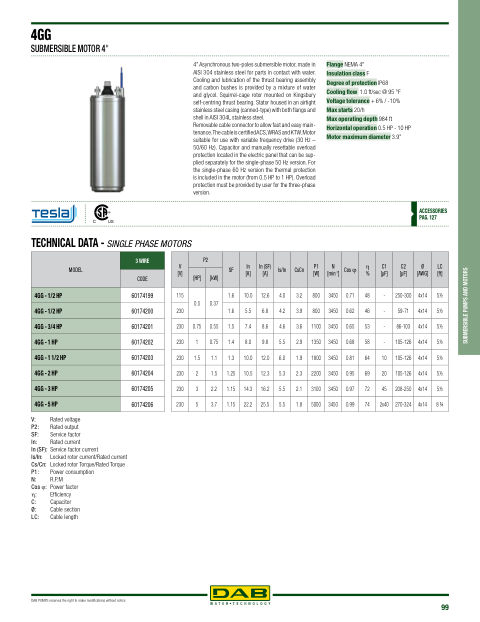

- Single phase 230 V 60 Hz from 0.5 to 5.0 HP
- Three phase 230 V 60 Hz from 0.5 to 7.5 HP, 460 V 60 Hz from 0.5 to 10 HP
- 115 V 60 Hz single phase in 0.5 HP only
- IP68, insulation class F, up to 20 starts an hour, 984 ft (299.9 m) operating depth
- Other voltages and frequencies on request
Starting and protection
Single phase motors keep their capacitor and manual-reset overload in a control box that ships separately, so plan for a 4CBUS box. On three phase motors the installer supplies the overload protection. Suitable for variable frequency drive use, 30 Hz to 50 Hz.
Build and approvals

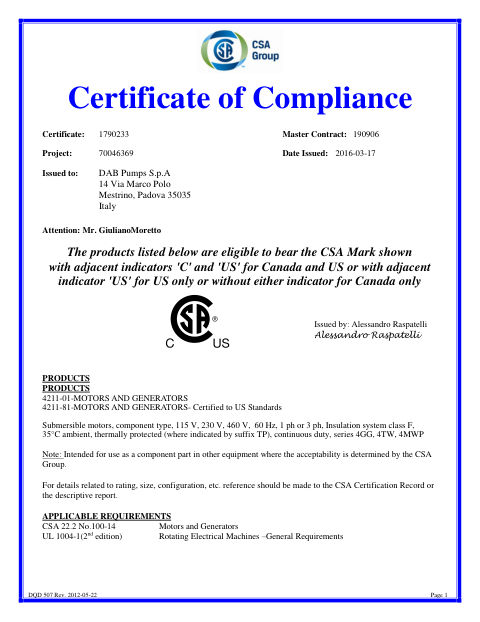

AISI 304 stainless shell and casing, coated cast iron housings, a removable cable connector for quick service, and a thrust block cooled by a water and glycol mix. Motor and cable are certified to CSA and UL, plus NSF 61 and 372. The all-AISI 316 4GX is available on request.

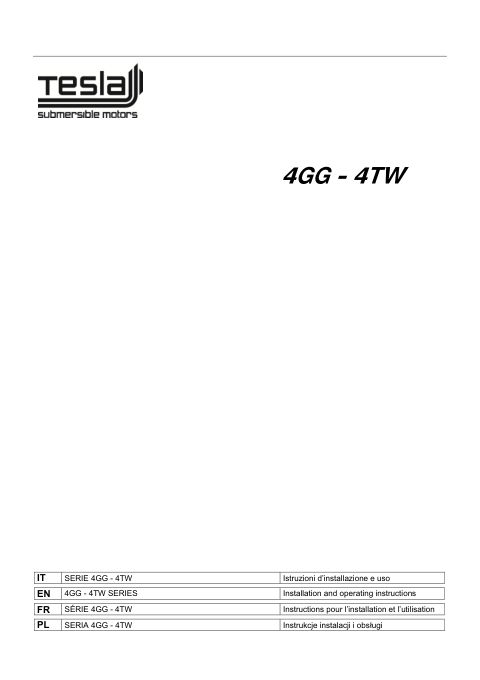

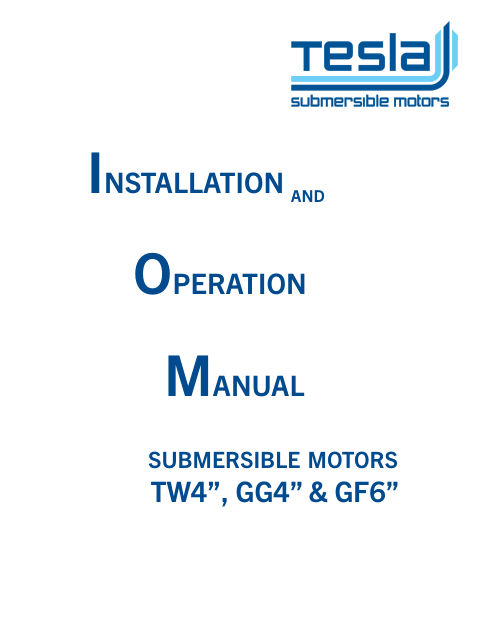

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
| Brand | DAB |
|---|---|
| Manufacturer part # | 4GG |
| Series | TESLA GG 4 in submersible motor |
| Flange | NEMA 4 in |
| Power range, single phase 230 V 60 Hz (series) | 0.5 HP to 5.0 HP |
| Power range, three phase 230 V 60 Hz (series) | 0.5 HP to 7.5 HP |
| Power range, three phase 460 V 60 Hz (series) | 0.5 HP to 10 HP |
| Power range, single phase 115 V 60 Hz (series) | 0.5 HP only |
| Horizontal operation (series) | 0.5 HP to 10 HP |
| Control box | Single phase: capacitor and manual-reset overload are in a separate control box. Three phase: overload protection supplied by the user |
| Degree of protection | IP68 |
| Insulation class | F |
| Maximum operating depth | 984 ft (299.9 m) |
| Minimum cooling flow | 1.0 ft/sec at 95 °F (0.3 m/s at 35 °C) |
| Voltage tolerance | +6% / -10% |
| Maximum starts | 20 per hour |
| Variable frequency drive | Suitable, 30 Hz to 50 Hz |
| Materials | AISI 304 stainless steel external shell and AISI 304L casing, coated cast iron top and bottom housings |
| Other version | 4GX in AISI 316 stainless steel, on request |
| Certifications | Motor and cable certified to CSA and UL; NSF 61 and 372 drinking water standards |
