4 in TESLA 4TW submersible well motor, no control box needed

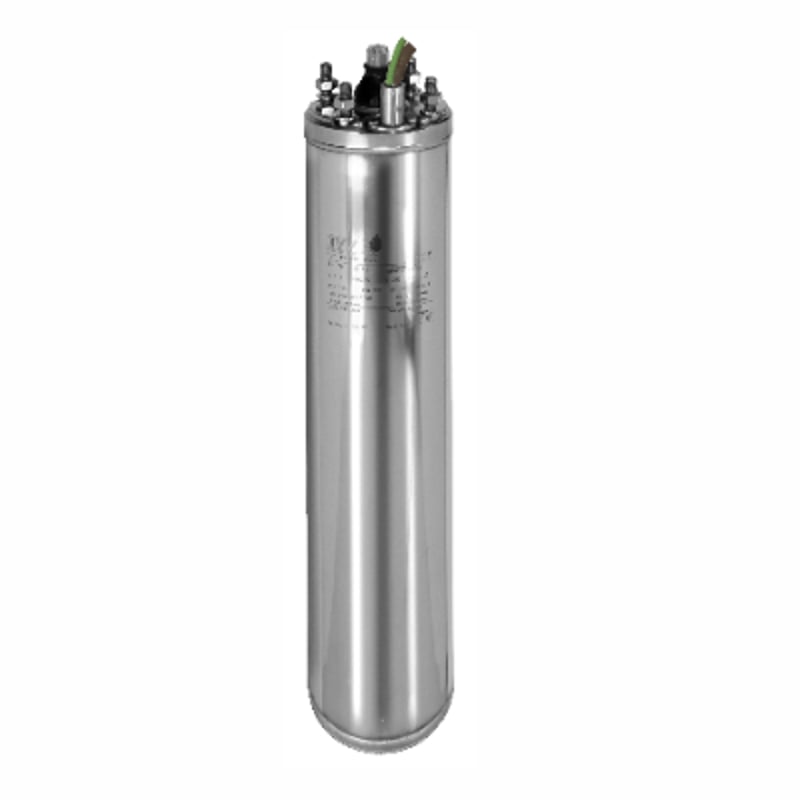

A canned-stator 4 in submersible motor from the DAB TESLA line, for driving 4 in well pumps. The starting capacitor sits inside the motor, so there is no separate control box to mount and wire. Horsepower and voltage for this listing are in the product title.
Series ratings
- Single phase 230 V 60 Hz from 0.5 to 1.5 HP; 115 V 60 Hz in 0.5 HP only
- IP68, insulation class F, up to 20 starts an hour
- Rated to 984 ft (299.9 m) operating depth
- Built-in thermal protection on the 0.5 to 1 HP, 230 V 60 Hz versions
- Suitable for variable frequency drive use, 30 Hz to 50/60 Hz
Build and approvals

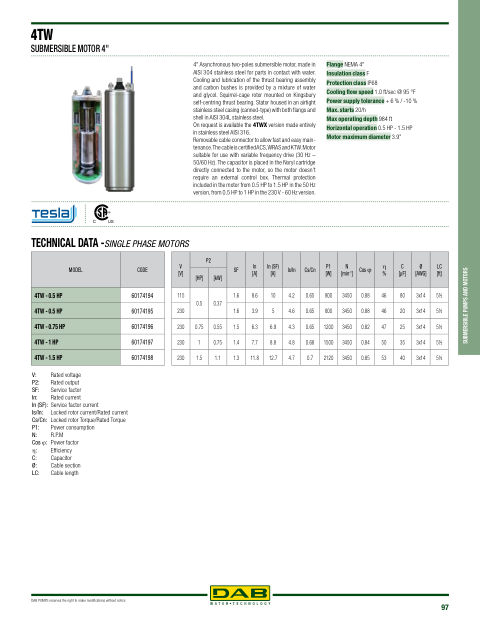

AISI 304 stainless steel stator shell with coated cast iron housings, a water and glycol mix cooling the thrust bearing, and a removable cable connector for quick service. Keep water moving past the motor at 1.0 ft/sec or better at 95 °F so it stays cool. Motor and cable are certified to CSA and UL, plus NSF 61 and 372 for drinking water. The all-AISI 316 4TWX is available on request. These are series figures; this model's own are on the spec sheet under Downloads.

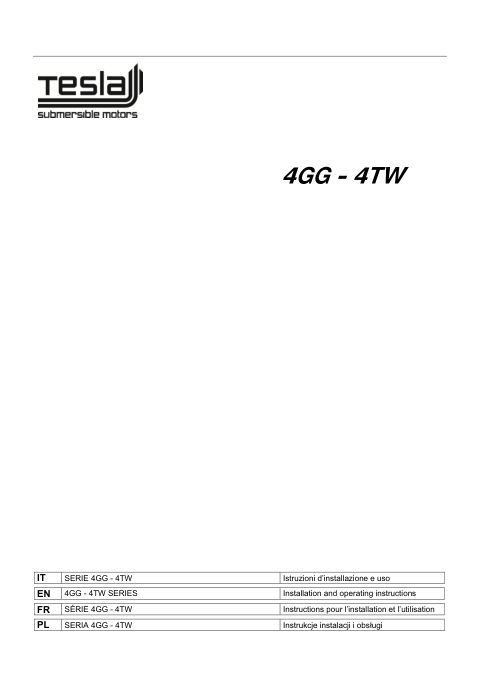

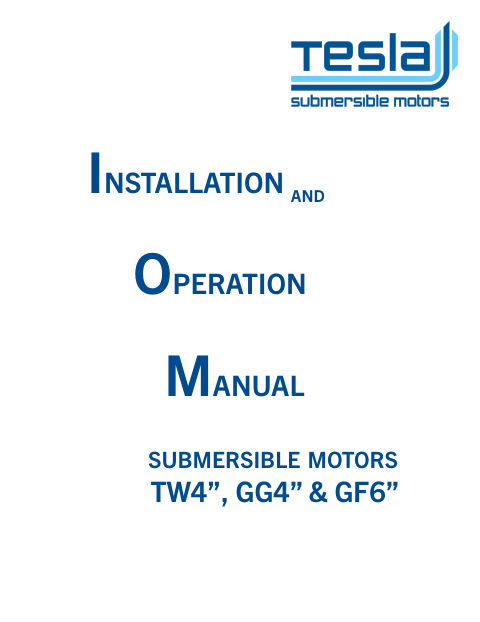

Spec sheets and instructions are under Downloads. Order at your trade pricing or pick up at ProSource in Kelowna, Westside, Burnaby, Vancouver, Langley or Calgary.
| Brand | DAB |
|---|---|
| Manufacturer part # | 4TW 0.5 HP |
| Series | TESLA 4TW 4 in submersible motor |
| Flange | NEMA 4 in |
| Power range, single phase 230 V 60 Hz (series) | 0.5 HP to 1.5 HP |
| Power range, single phase 115 V 60 Hz (series) | 0.5 HP only |
| Horizontal operation (series) | 0.5 HP to 1.5 HP |
| Control box | Not required, the capacitor is inside the motor stator |
| Thermal protection | Built in on the 0.5 HP to 1 HP, 230 V 60 Hz versions |
| Degree of protection | IP68 |
| Insulation class | F |
| Maximum operating depth | 984 ft (299.9 m) |
| Minimum cooling flow | 1.0 ft/sec at 95 °F (0.3 m/s at 35 °C) |
| Voltage tolerance | +6% / -10% |
| Maximum starts | 20 per hour |
| Variable frequency drive | Suitable, 30 Hz to 50/60 Hz |
| Materials | AISI 304 stainless steel stator shell, coated cast iron top and bottom housings |
| Other version | 4TWX in AISI 316 stainless steel, on request |
| Certifications | Motor and cable certified to CSA and UL; NSF 61 and 372 drinking water standards |
