2HP 230V 60H 1500 4" 3-Wire Single-Phase Motor 1.15SF W/LEAD SAND FIGHTER

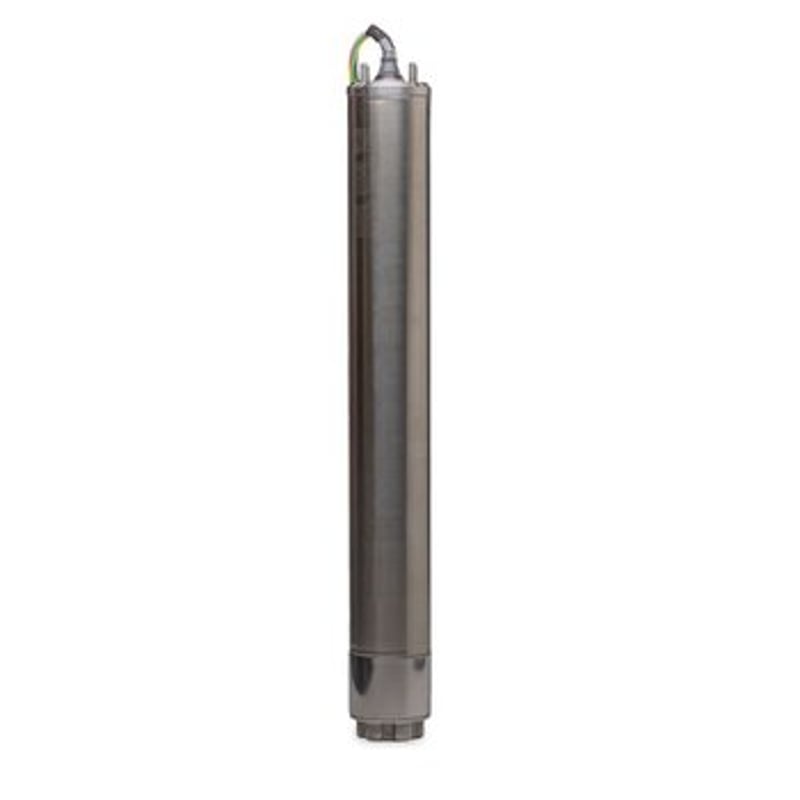

Franklin Electric 4" Submersible Motor, 2 HP, single-phase, 3-wire, 230V, 60 Hz — 4" submersible motor for residential and light commercial well pump systems; Water Witch Cap, stainless steel construction.
OverviewThe Franklin Electric 4" submersible motor rated at 2 HP is designed for pairing with 4" pump ends in residential and light commercial potable water applications. Operating at 230V single-phase on a 3-wire configuration, it requires a matched external control box for capacitor-start operation. The 3-wire design delivers reliable starting torque and motor protection in high-demand systems where 2 HP is needed for deeper wells or longer pump settings.The motor shell and shaft are constructed from stainless steel for corrosion resistance in groundwater environments. Franklin Electric's Water Witch Cap (WWC) provides low-water protection by sensing motor temperature. Motor is 60 Hz single-phase and is compatible with Franklin Electric control boxes and SubDrive variable frequency drives. Backed by Franklin Electric's industry-standard warranty.
Specifications

HP	2 HP
Voltage	230V
Phase	Single-phase
Hz	60 Hz
Wire	3-wire
Casing diameter	4"
Motor protection	Water Witch Cap (WWC)
Part No.	1P-2HP-230-3W-WWC
